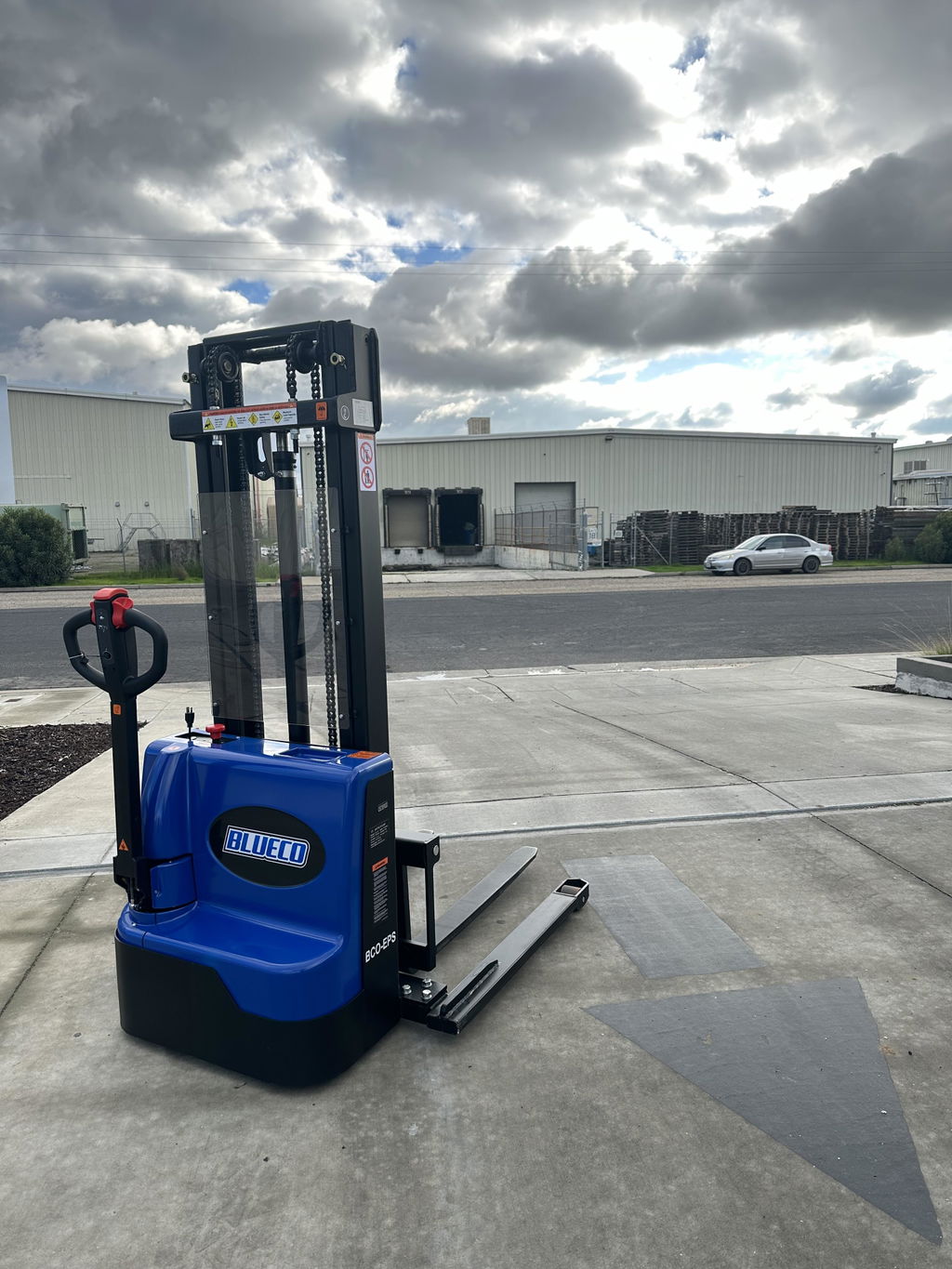

STRADDLE LEG PALLET STACKER 118" LIFT ADJUSTABLE LEGS
Lifts a rated 3,300 lb to 118 in, so you can stack pallets three to four levels high. Set the straddle legs anywhere from 28 to 50 in and the fork width to suit the pallet, then charge it from a 110 V plug.
- Rated load
- 3,306 lb (1,500 kg)
- Max lift height
- 118 in (2,997 mm)
- Load center
- 23.62 in (600 mm)
- Lowered fork height
- 3 in (76 mm)
- Lift speed
- 2.8–4.1 in/s (70–105 mm/s)
- Straddle leg span
- 28–50 in (711–1,270 mm)
- Fork length
- 44.29 in (1,125 mm)
- Fork width
- Adjustable
- Drive wheel
- 9 in (229 mm)
- Drive speed
- 1.9 / 2.7 mph (3 / 4.3 km/h)
- Motor
- 750 W drive, 2,200 W lift (24 V)
- Charger
- 24 V, 10 A; 110 V plug
- Footprint
- 69 × 32 in (1,753 × 813 mm)
- Ground clearance
- 1.3 in (33 mm)
- Net weight
- 1,380 lb (626 kg)
- SKU
- BCO-EPS
Ships by LTL freight with a $0 shipping fee, the next business day, Monday to Friday. Freight usually takes 1 to 3 business days. Every unit is palletized and strapped, so a forklift or a standard dually can take delivery.
Prefer to collect? Choose in store pick-up in Fresno: orders placed before 2:00 pm are processed the same day.
A 3-year limited warranty from the date of purchase covers defects in materials and workmanship under normal use. Read the warranty.
Split your purchase into bi-weekly or monthly payments with Shop Pay Installments at checkout. No hidden fees, and no impact on your credit score to apply. How financing works.
For warehouses, fulfillment centers and loading docks.
Watch the video
Stack pallets three to four levels high without the footprint of a forklift. The stacker lifts a rated 3,300 lb to 118 in and charges from a 110 V plug.
- 3,300 lbRated load
- 118 inLift height
- 3-yearLimited warranty
118-inch lift. Legs from 28 to 50 inches.
Set the straddle legs anywhere from 28 to 50 in to fit the pallet. The wider base adds stability when you lift heavier loads to greater heights.
Ask about larger orders
Drag to turn it. On a smartphone, place a full-size straddle-leg stacker in your own space with AR and walk around it in real time.
- Rated load3,300 lbRated, 1,500 kg.
- Max lift height118 in2,997 mm, three to four levels high.
- Straddle leg span28–50 in711–1,270 mm, adjustable.
- Footprint69 × 32 in1,753 × 813 mm.
Move smarter. Move faster.
Adjustable straddle legs
Set the legs anywhere from 28 to 50 in for the pallet you are handling. The wider base gives more stability with heavier loads at greater lift heights.
Adjustable forks
The 44 in forks adjust in width for different pallet sizes and load demands.
Step-less speed control
Speed control sits at your fingertips. Push the red throttle further to speed up, or ease off to creep along slowly.
Creep mode
Press the turtle button on the handle to reduce torque for heavy loads at maximum lift height.
Working light
An industrial working light is built in, for work and safety in any conditions, day or night.
Magnetic key and emergency stop
A magnetic key starts the stacker, and the emergency bump stop on the handle shuts it off.
Large-diameter drive wheel
A 9 in drive wheel on a 750 W drive motor, with drive speeds of 1.9 and 2.7 mph.
Integrated battery
The integrated battery charges from a 110 V plug through the 24 V, 10 A charger.
What goes into the straddle-leg stacker.
Fully adjustable straddle legs
28 to 50 in · Adjustable
Large driving wheel
9 in diameter · 750 W drive
Integrated battery charger
Standard 110 V plug
Handle controls
Step-less throttle · Magnetic key
Material handling, side by side.
— Not listed for this model.
Prices in USD.

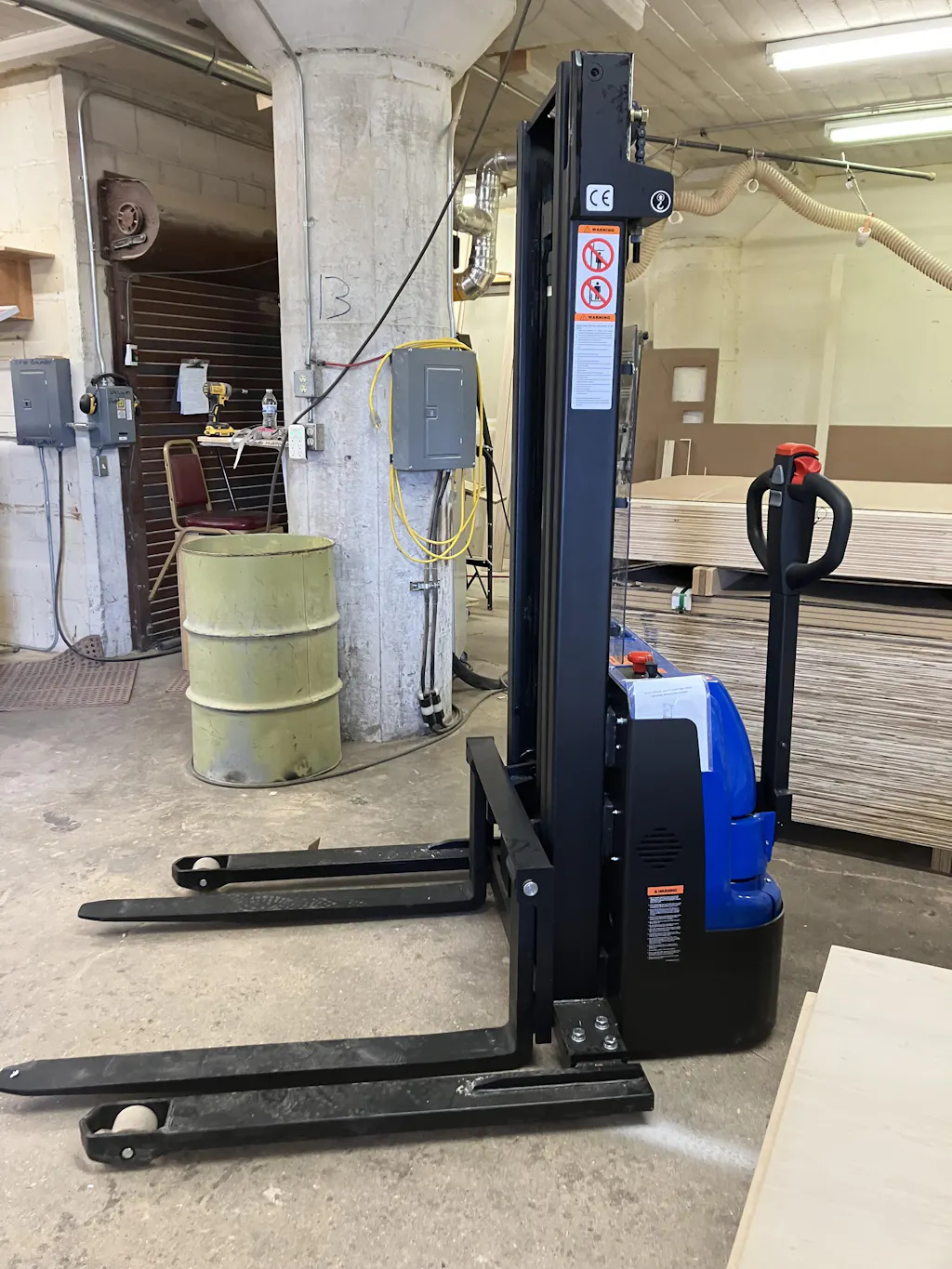

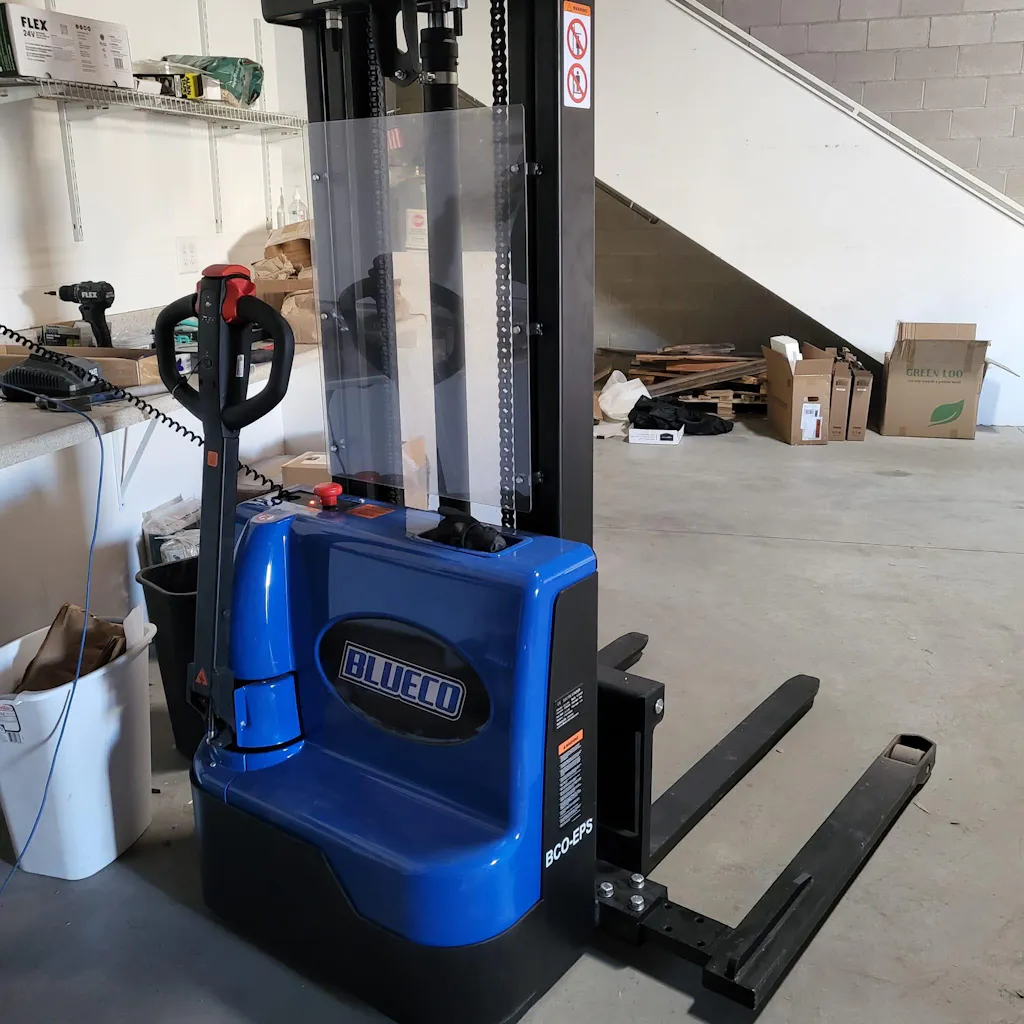

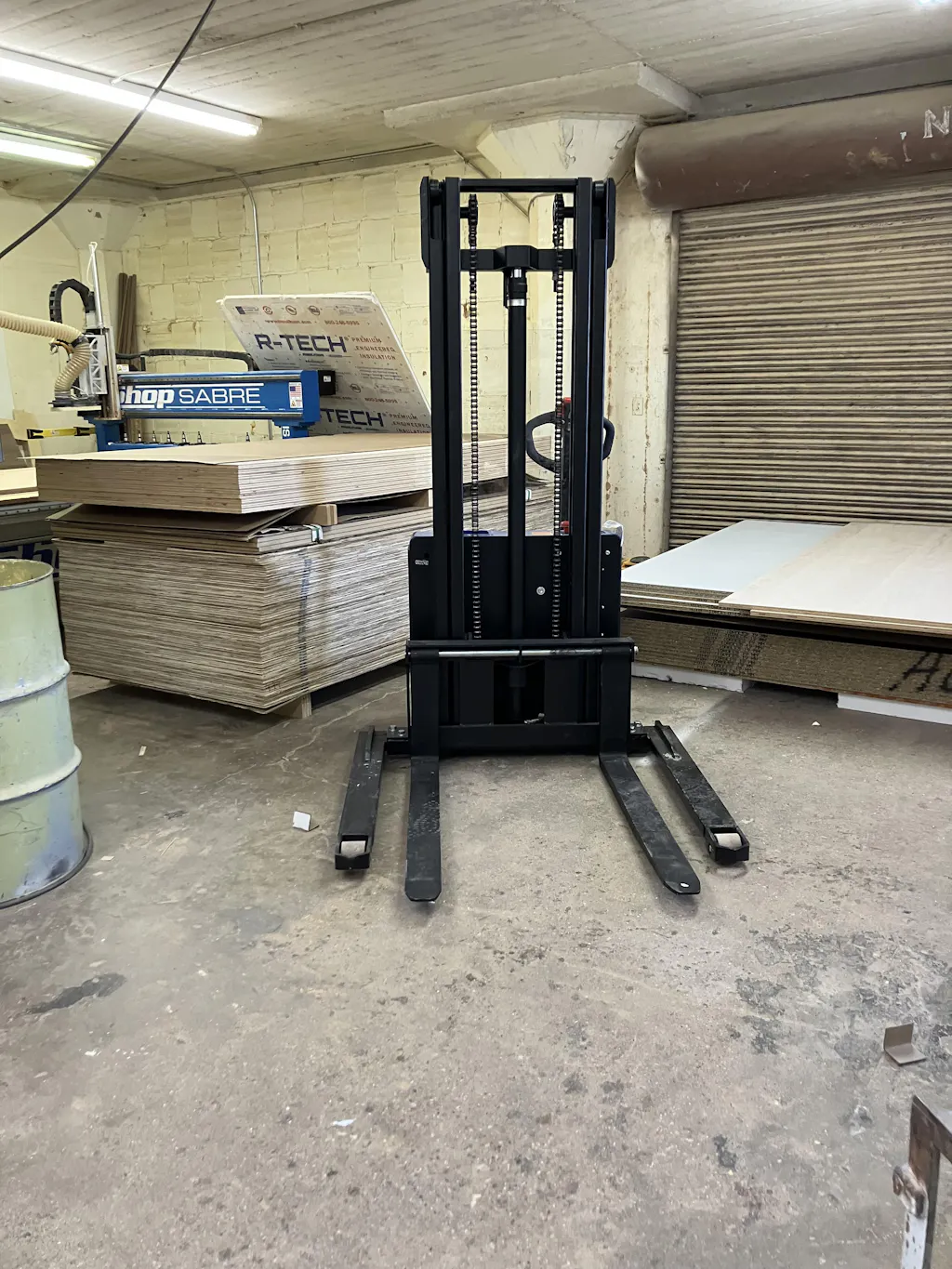

I’ve had the stacker for a few days now. It was packaged very well and arrived without issue. So far it’s been a great addition to the shop. The only downside I’ve been able to find as of now is that it gets stuck on my concrete driveway under load if I stop on an expansion crack since there is only one drive wheel. Just need to be aware of when I stop. This will be used inside of a shop most often and to accept deliveries. So far so good!
Ordered the stacker. It came the second day. Unfortunately there was a technical issue with the stacker and it had to be replaced with a new one. Jarred gave us really great customer service and we quickly got the new unit. It was not easy to offload the stacker from the pallet it came on so if you have no equipment be prepared to offload it e.g. with using multiple plywood sheets.
It works great, it was easy to transport into our shop, there is no problems we had, and was transported with care quick to respond
Thing is a work horse. We use it daily on docks and it takes abuse no problem. We love it!
Cost-effective, works well.
We purchased this for our warehouse to move around heavy panels. Super happy with our purchase and the customer support has been awesome. I would recommend this company 100 percent of the time. Thank you!
Love it.
