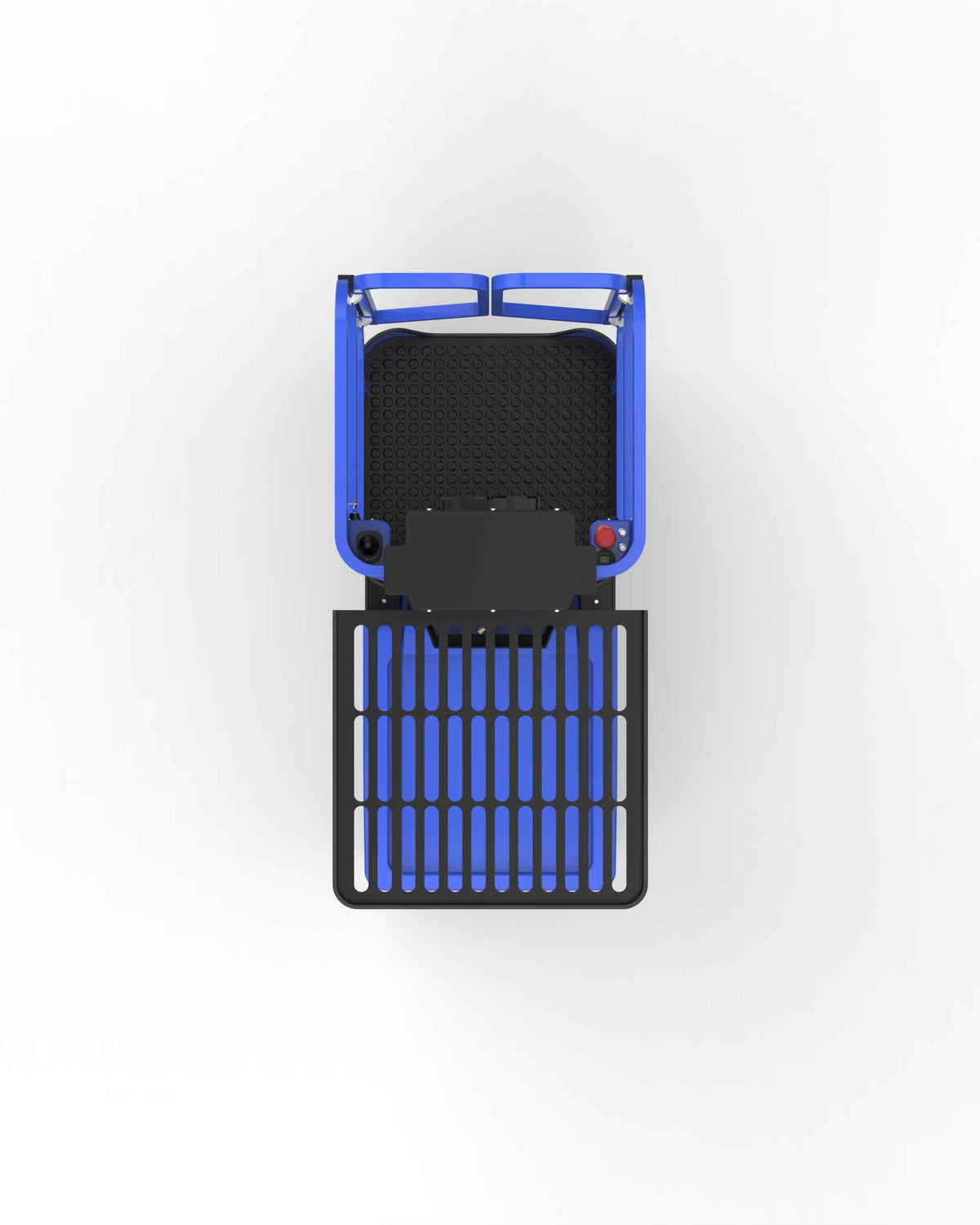

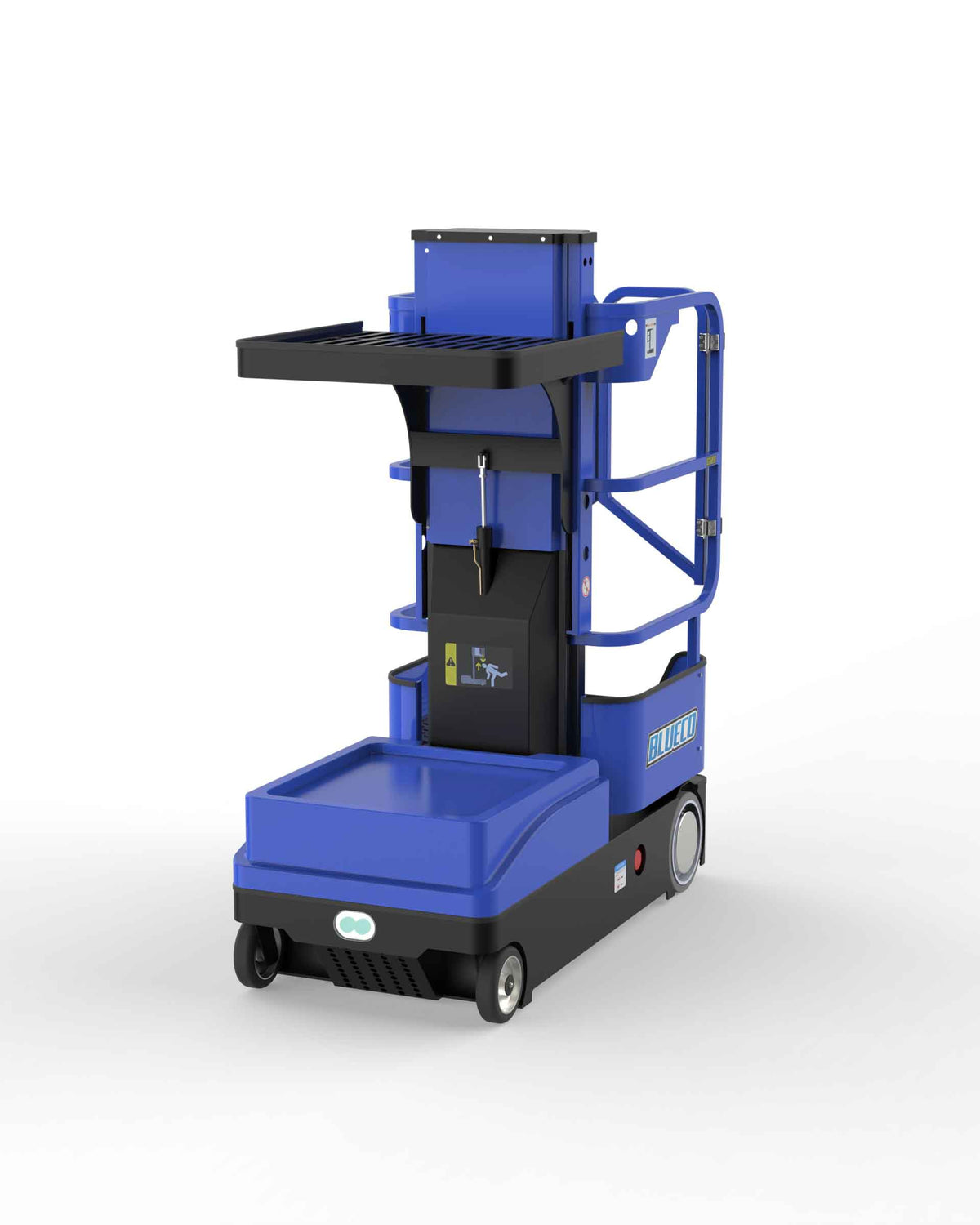

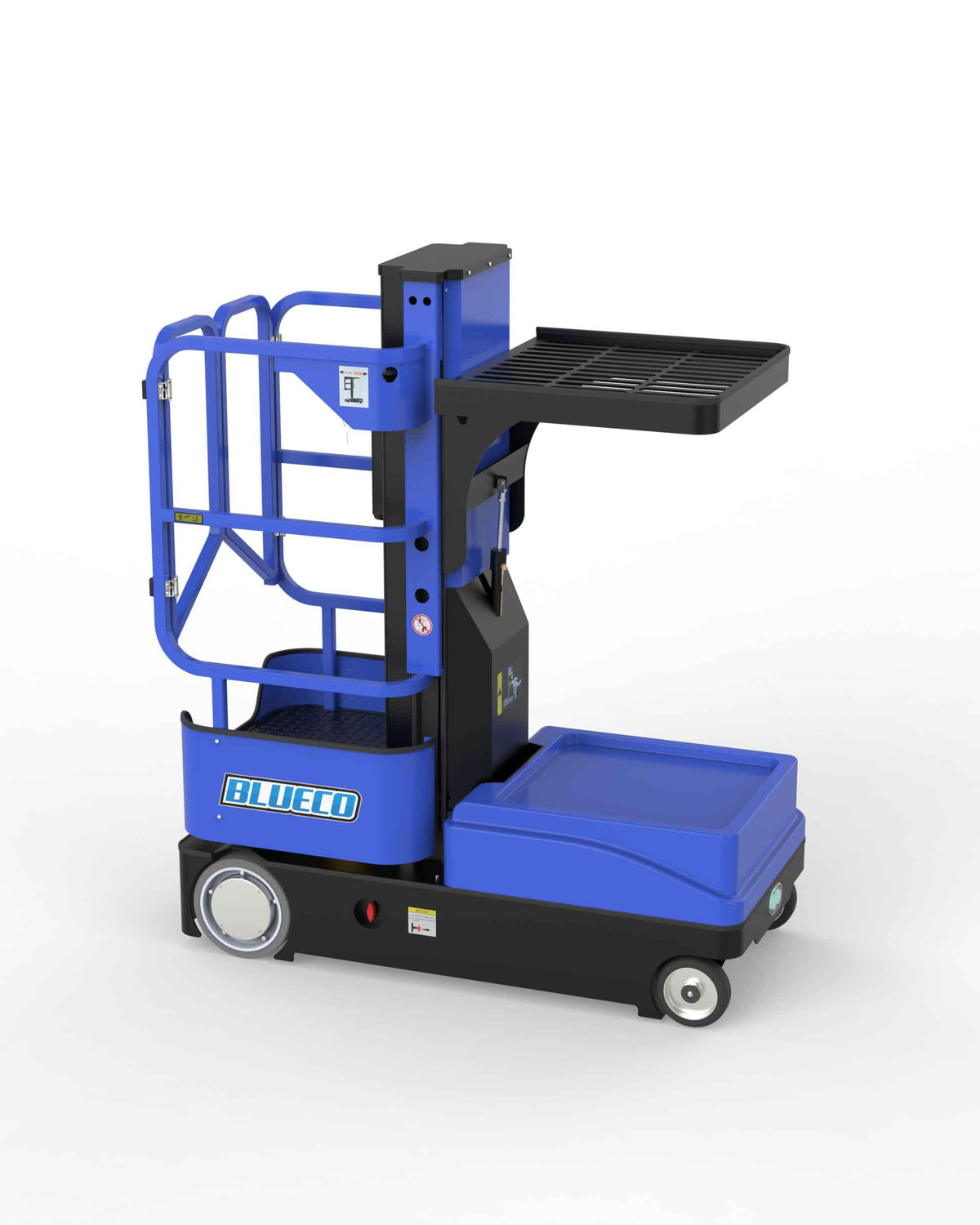

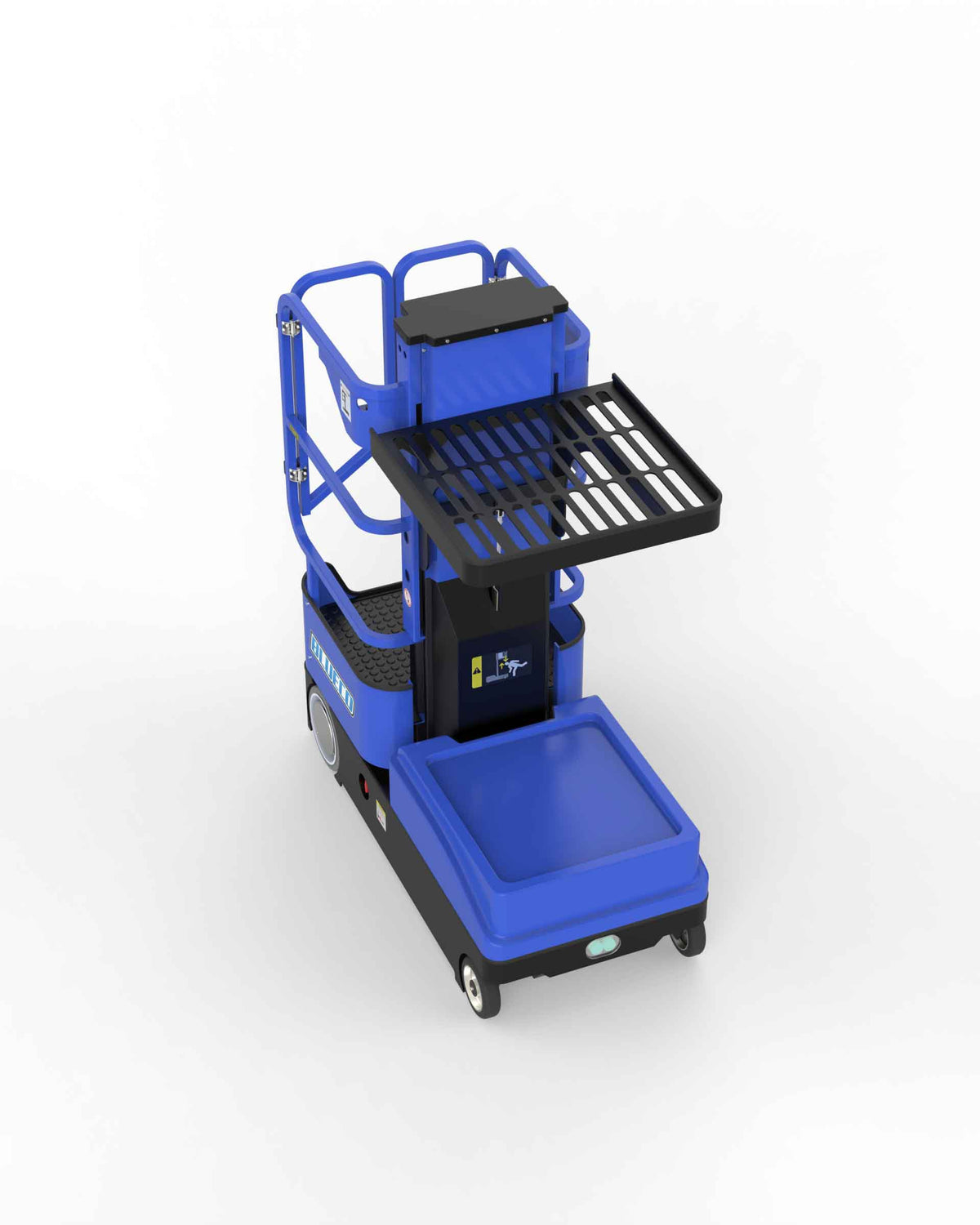

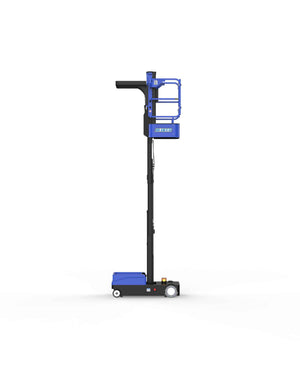

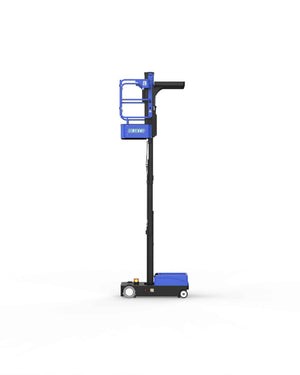

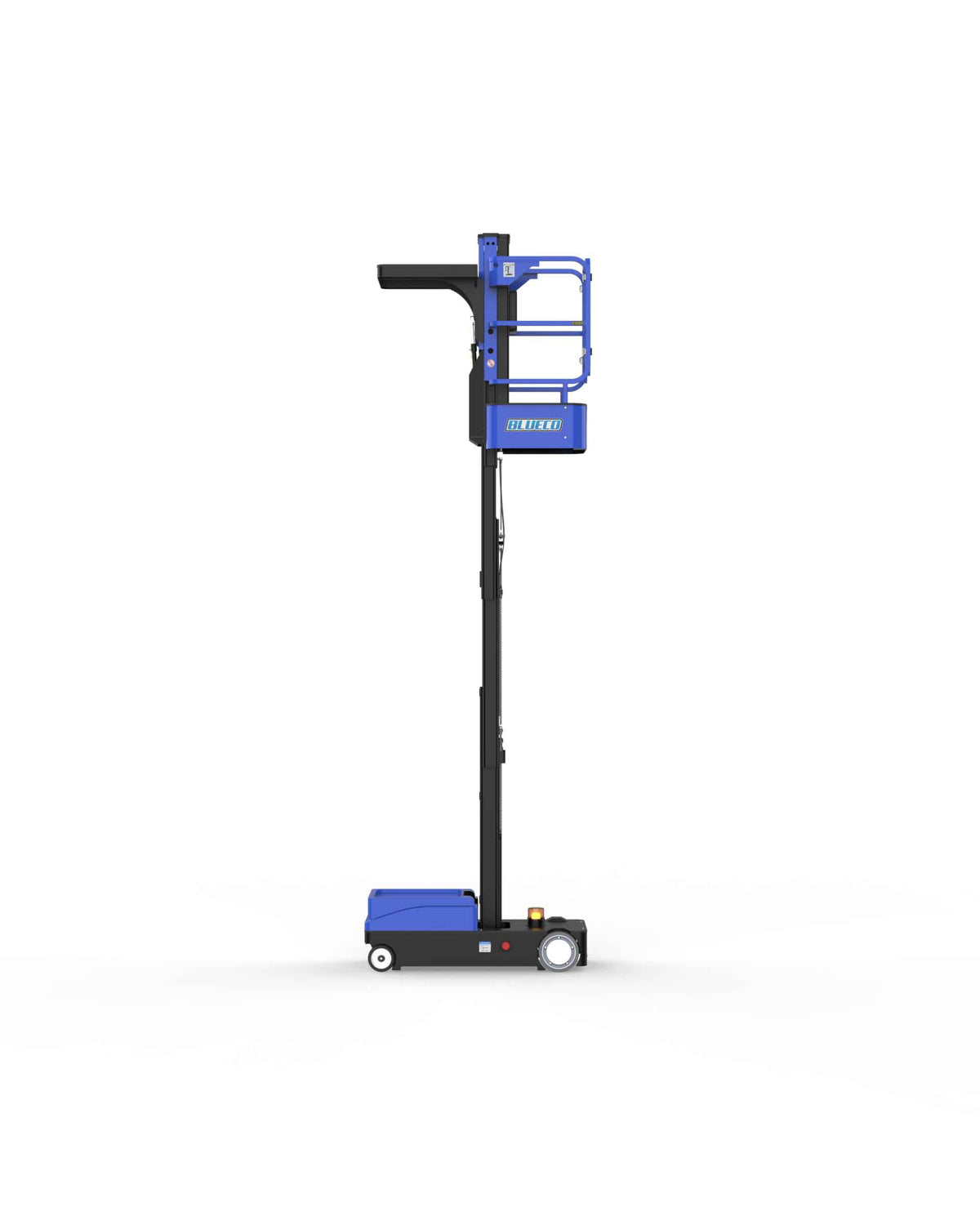

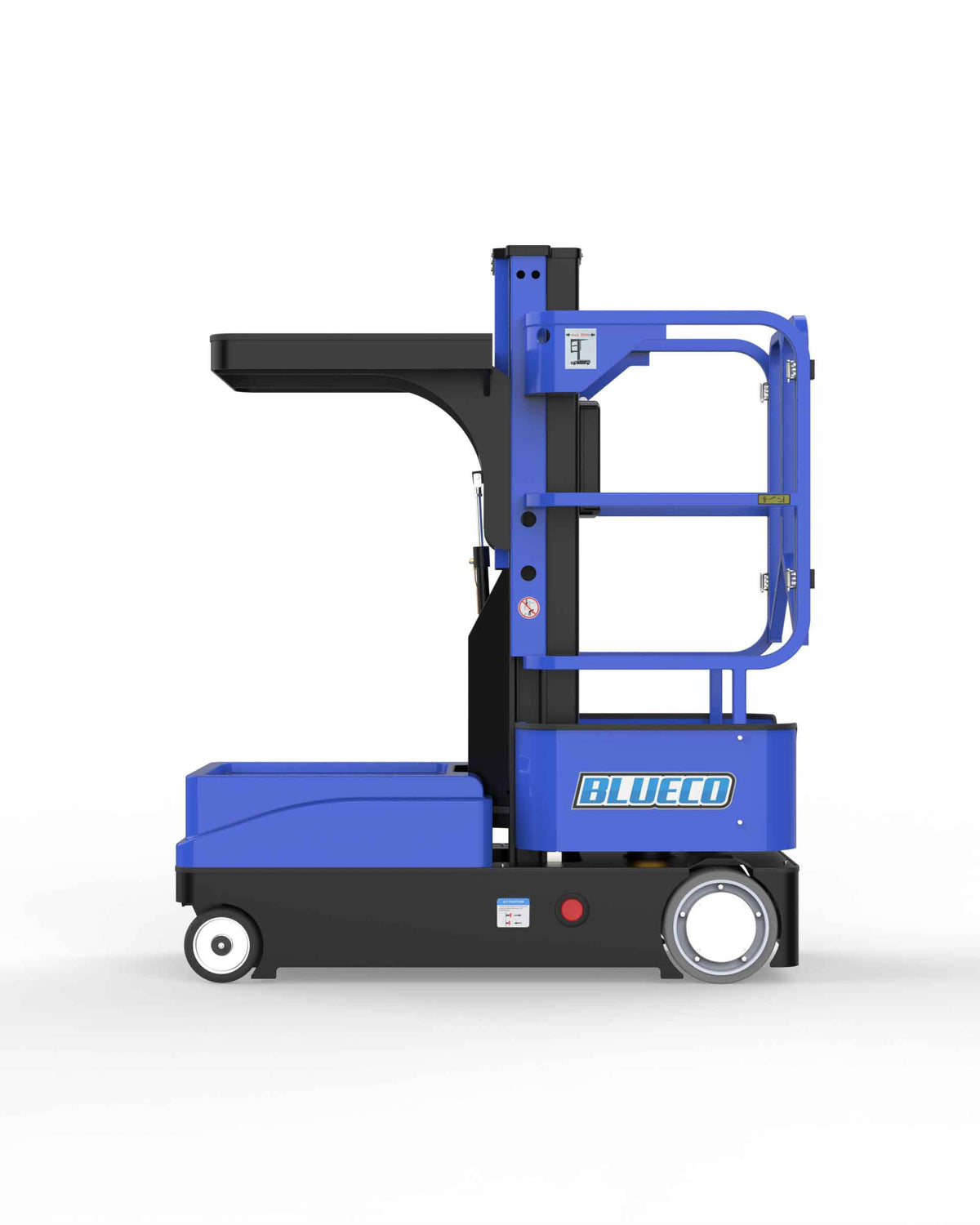

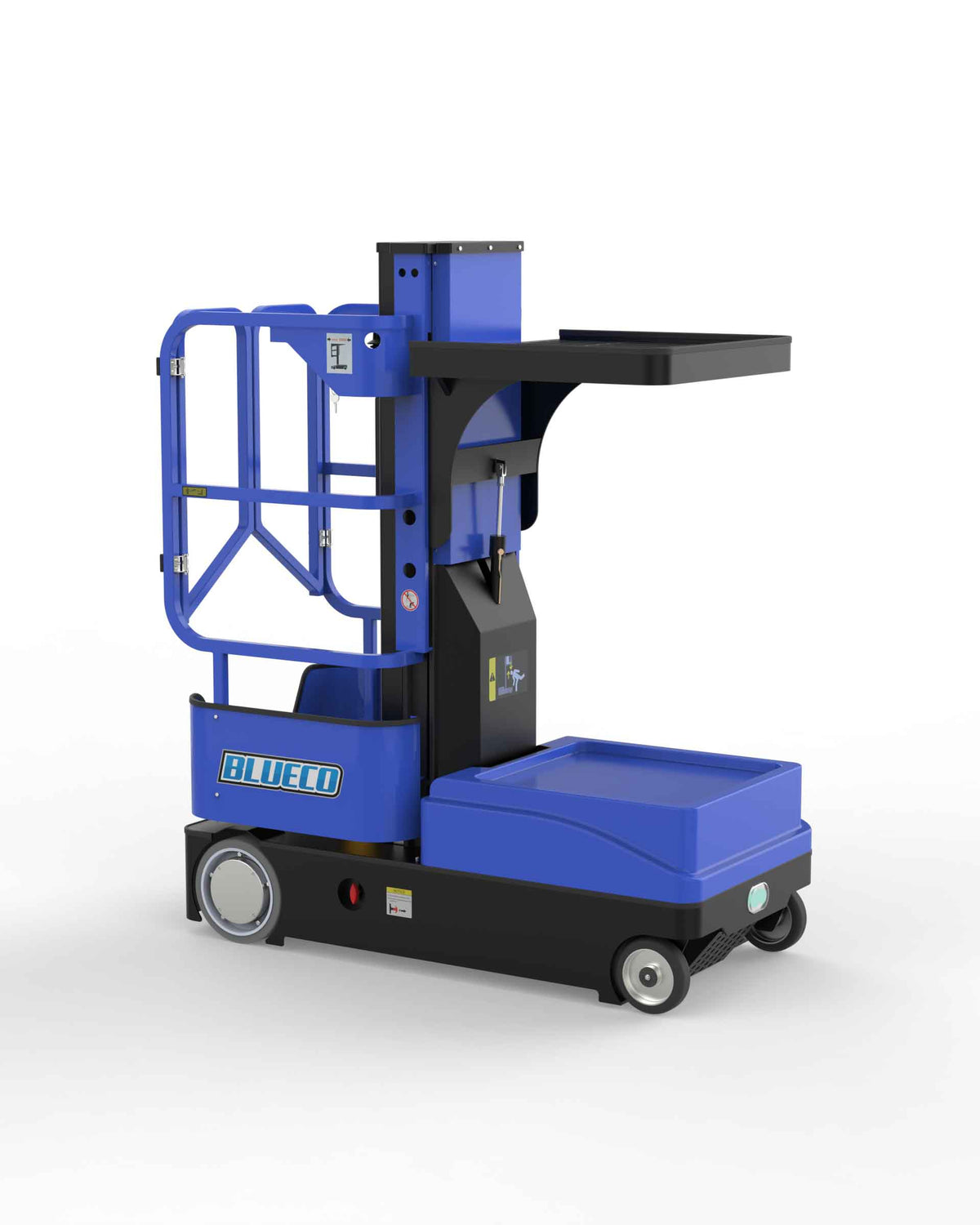

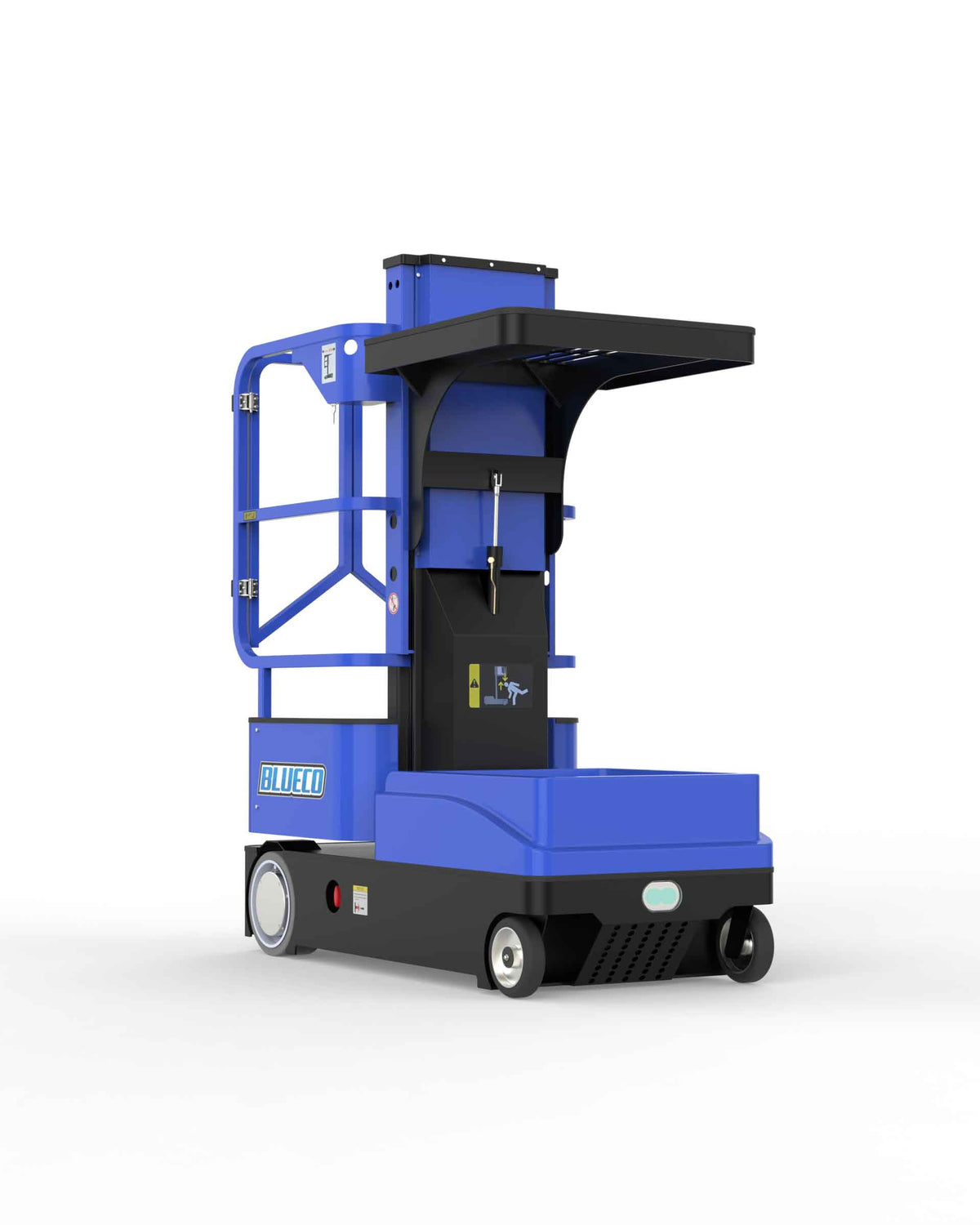

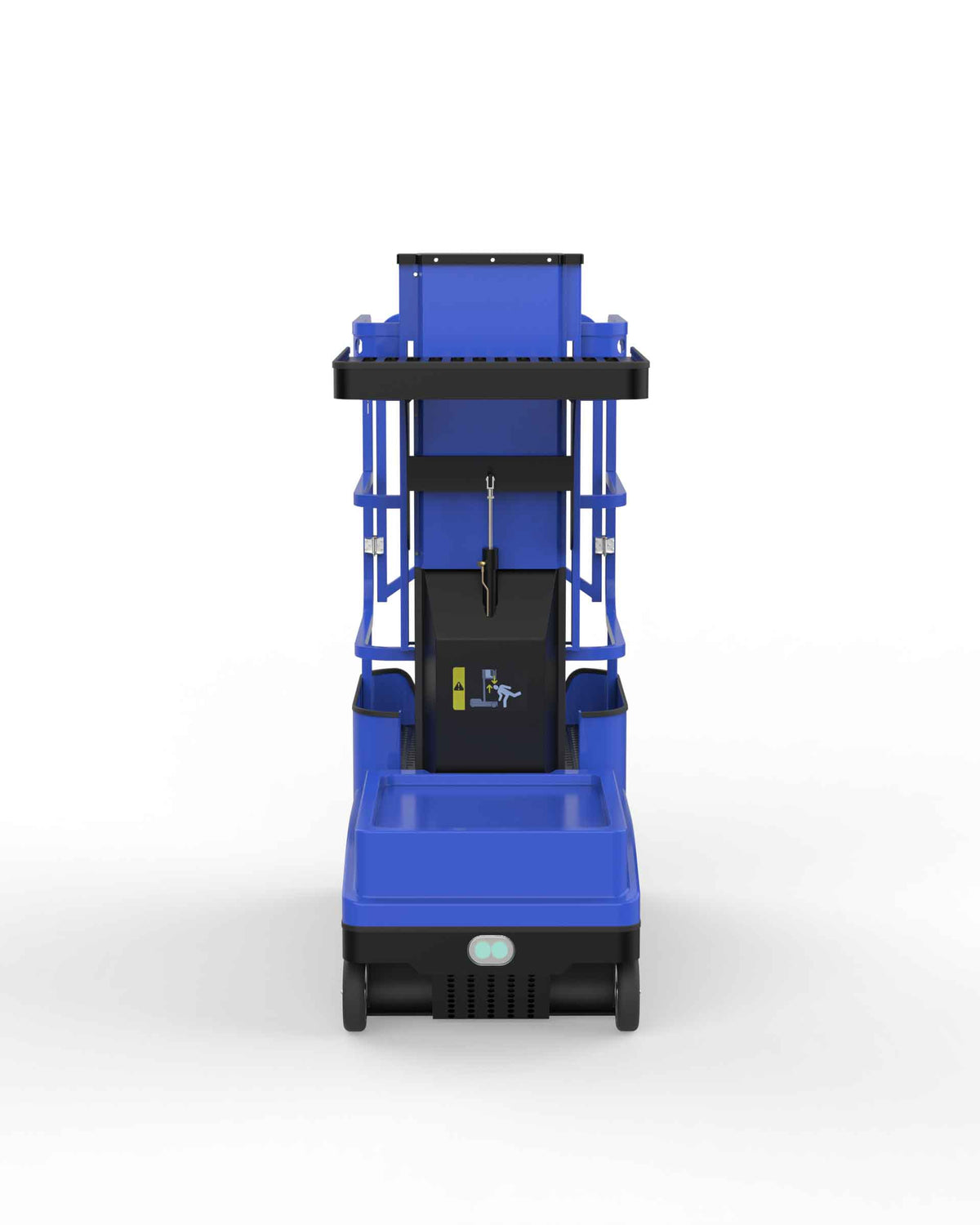

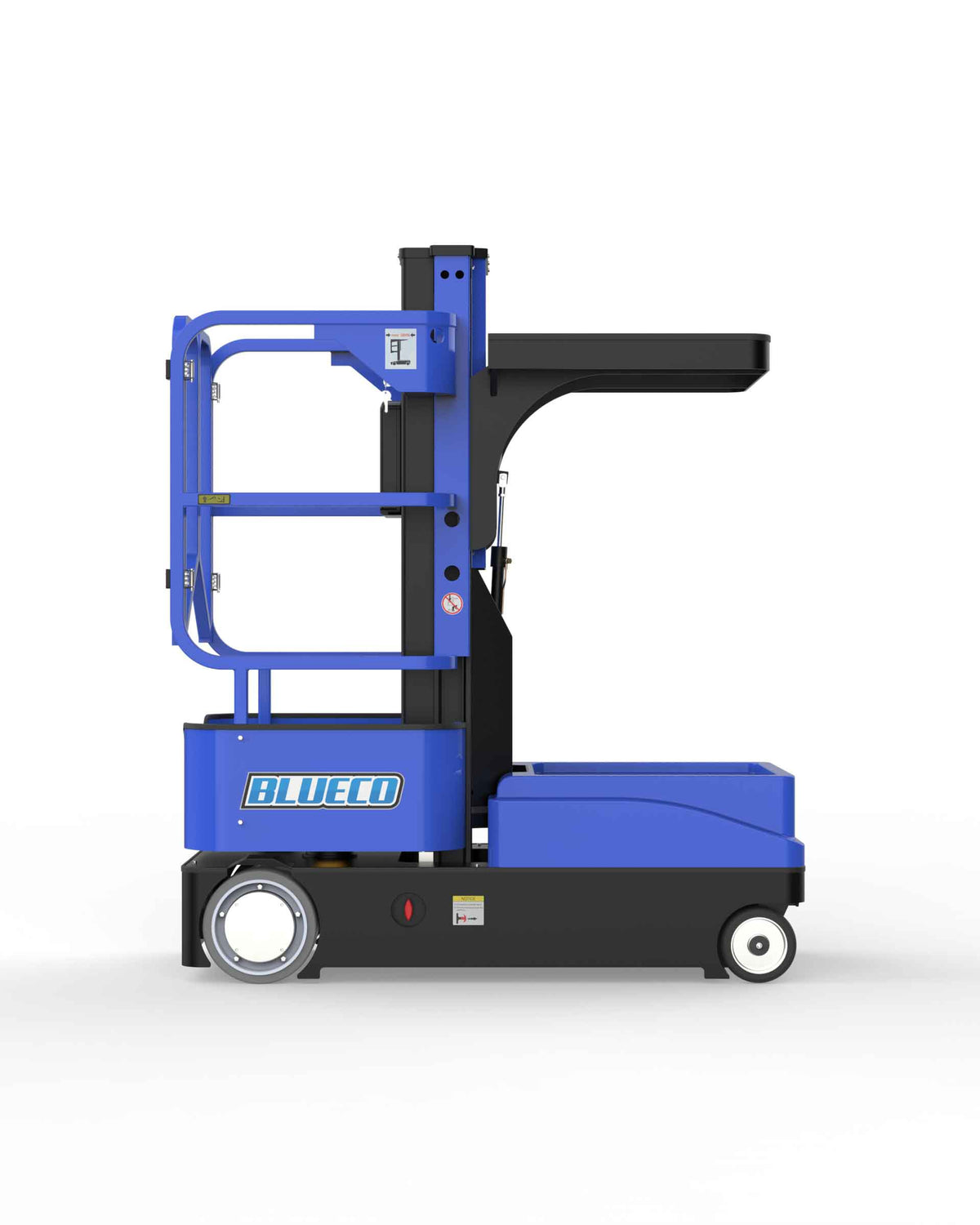

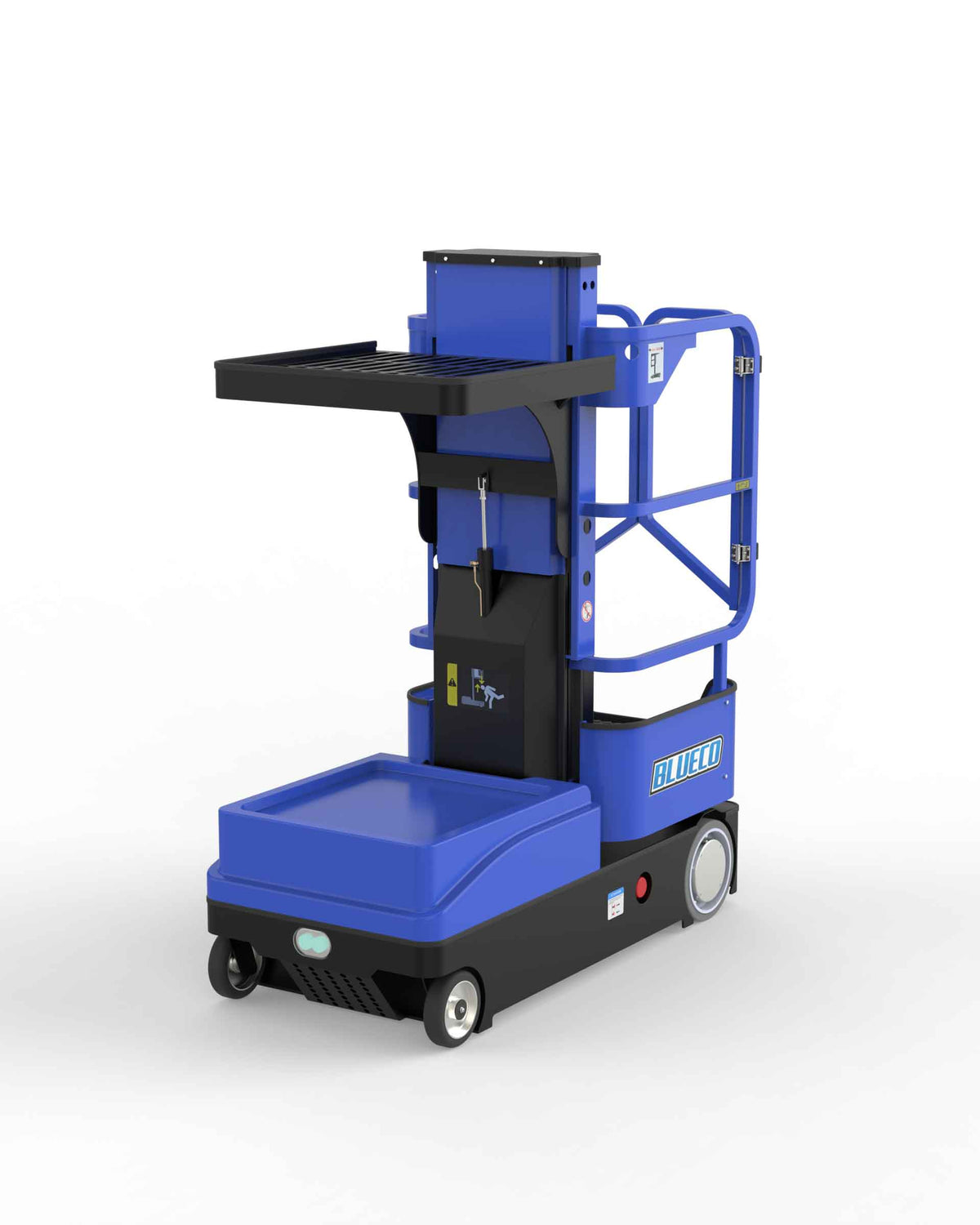

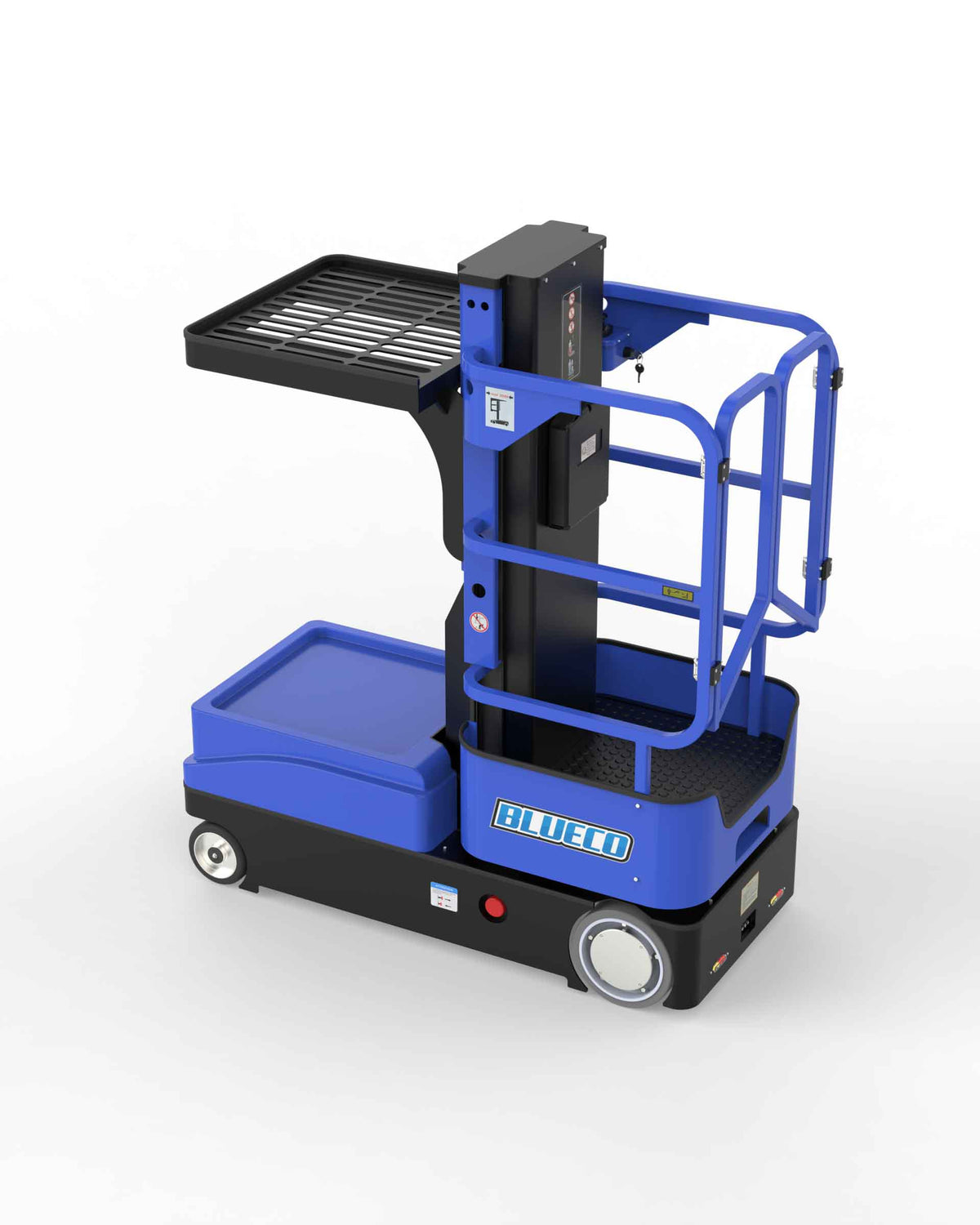

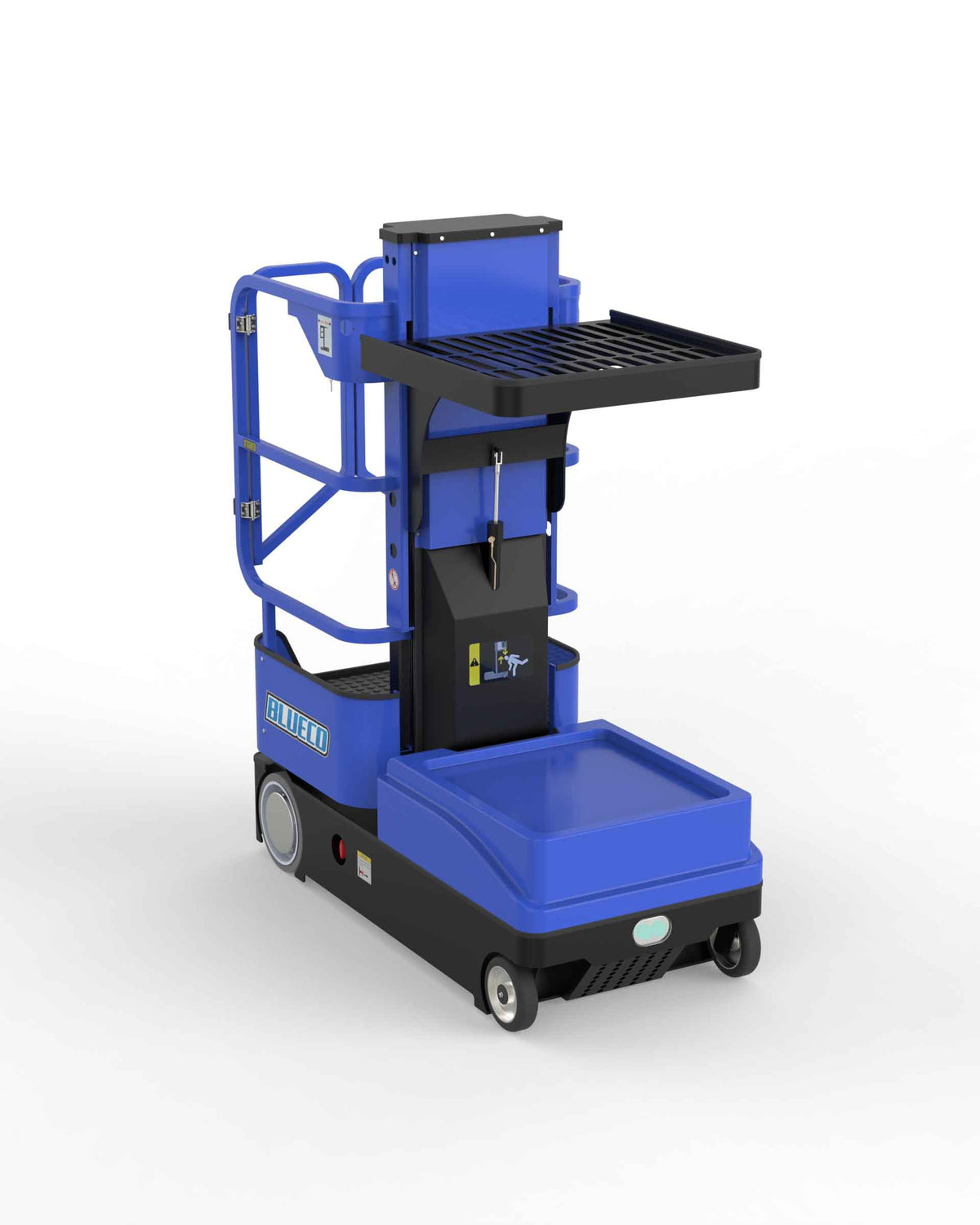

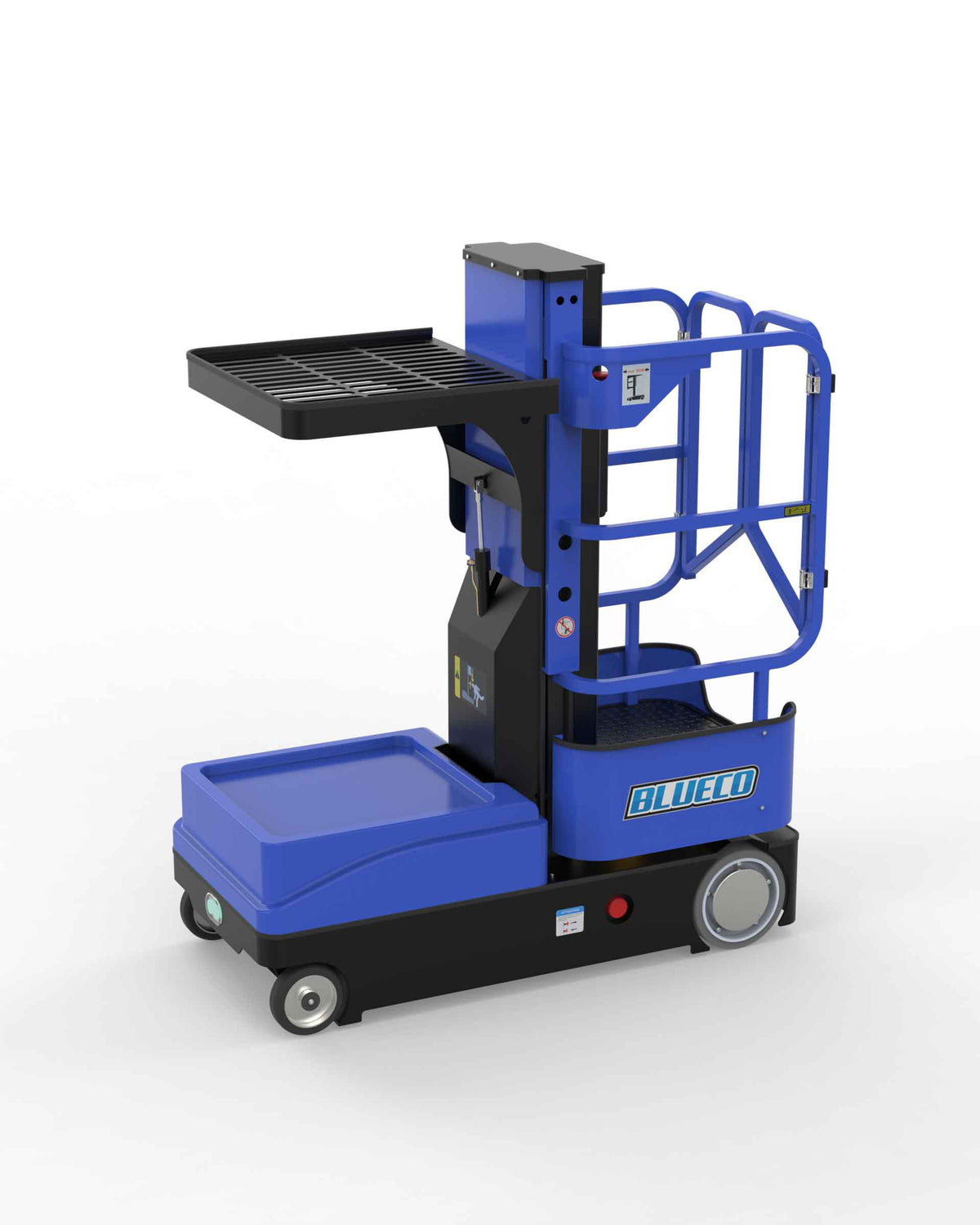

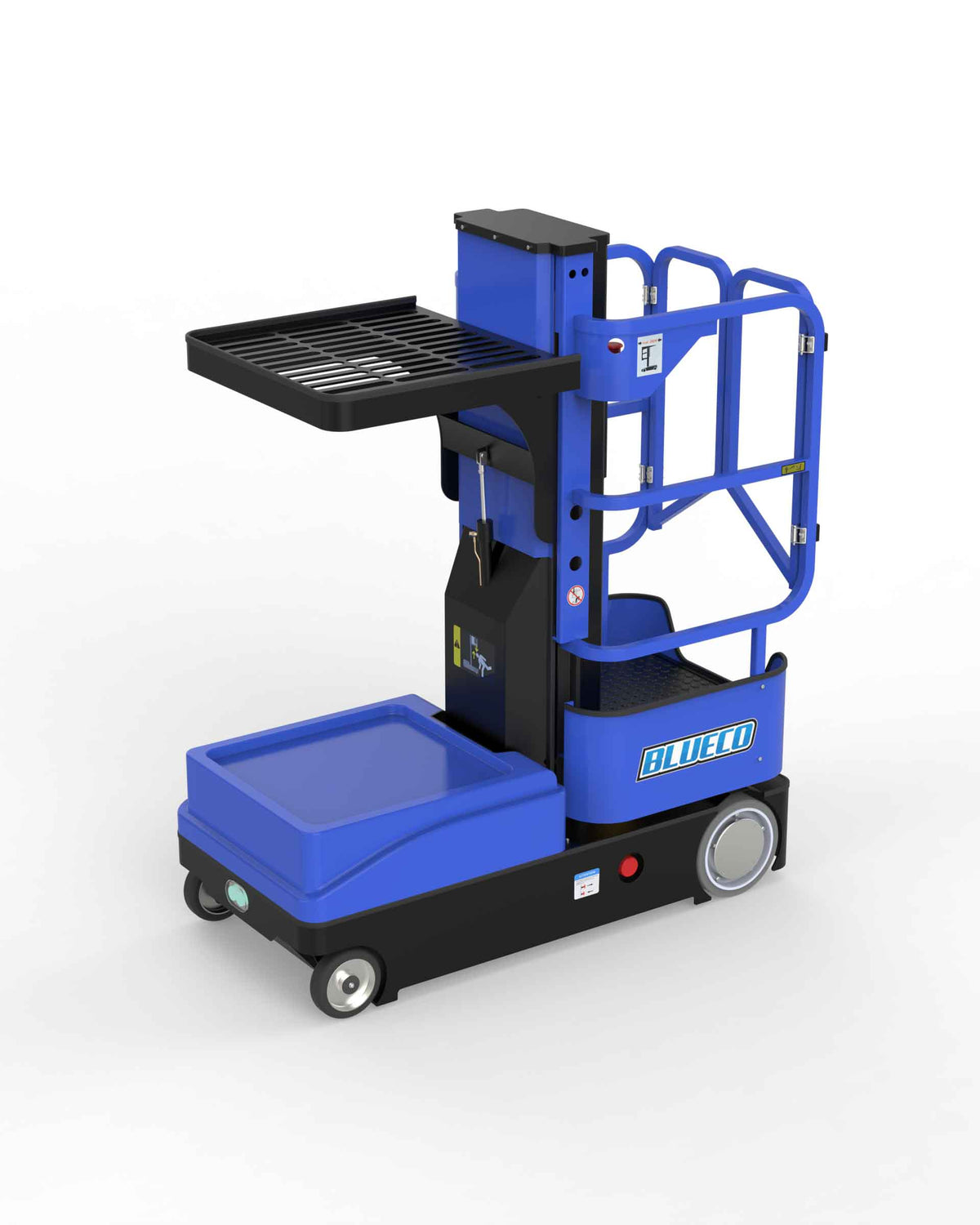

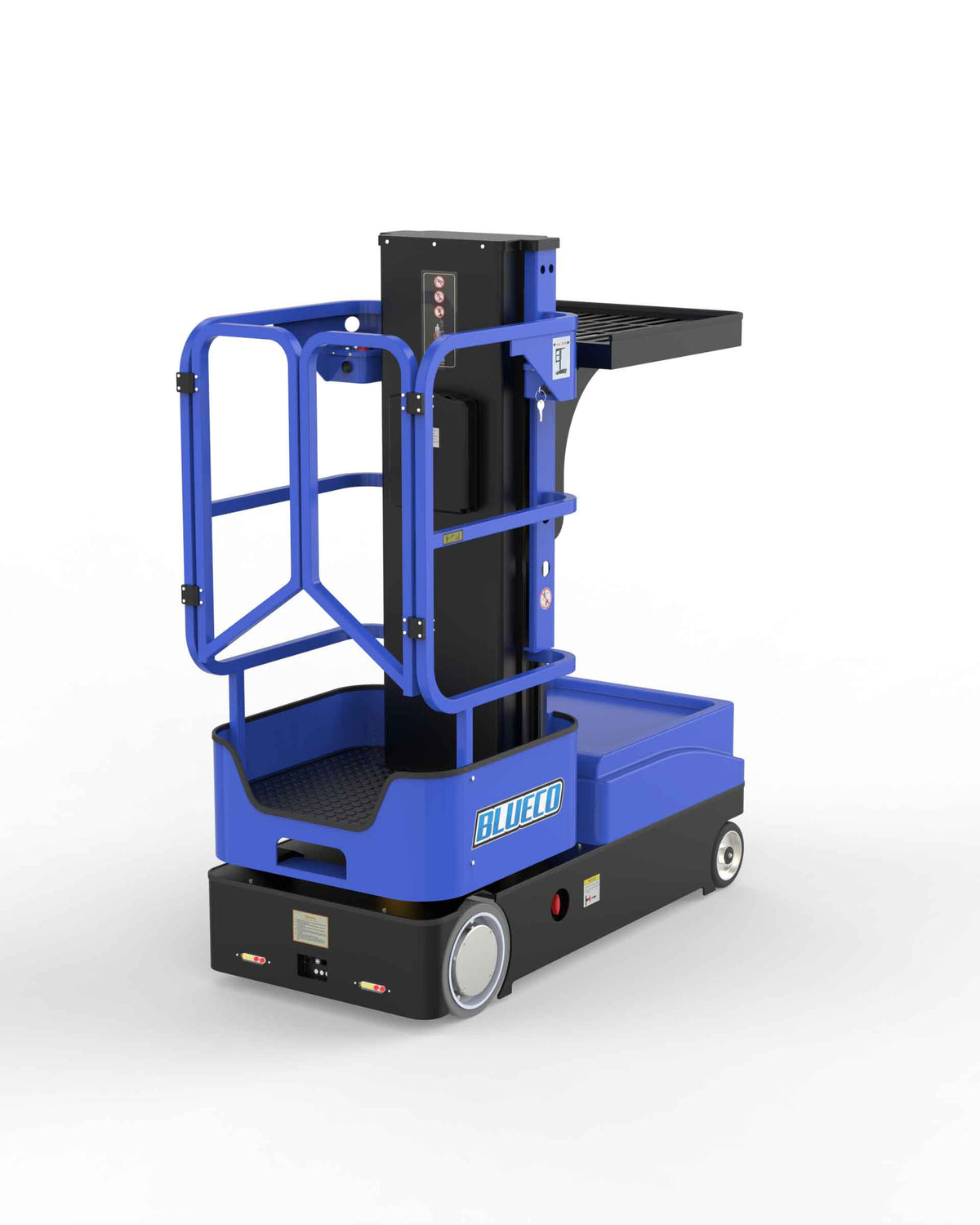

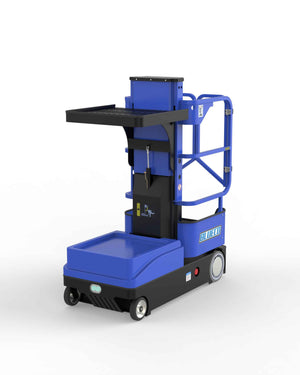

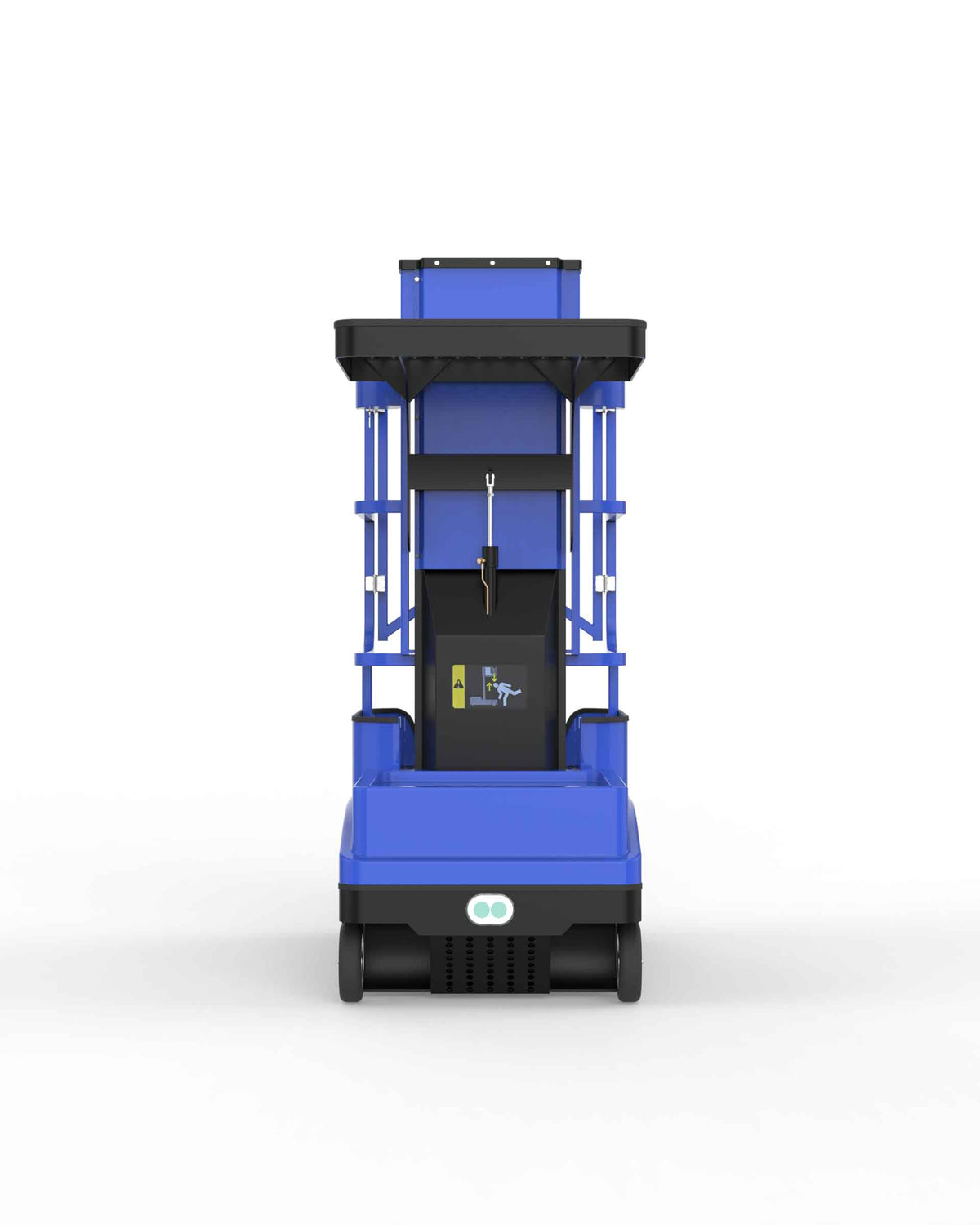

138" LIFT ELECTRIC PLATFORM TRUCK & ORDER PICKER
A fully electric order picker with a 138-inch platform lift and a 500 lb platform capacity. Step in at 21 in, let the self-closing gates shut behind you, and recharge from a standard 110 V outlet with the onboard charger.
- Platform height
- 137.80 in (3,500 mm)
- Platform capacity
- 500 lb (227 kg)
- Carry deck capacity
- 200 lb (91 kg)
- Step-in height
- 21 in (533 mm)
- Battery
- 2 × 12 V, 108 Ah
- Charger
- Onboard 24 V, 15 A; 110 V outlet
- Dimensions
- 58.27 × 29.53 × 69.29 in (1,480 × 750 × 1,760 mm)
- Maximum machine height
- 207.09 in (5,260 mm)
- Guardrail height
- 48.62 in (1,235 mm)
- Table height
- 19.69 in (500 mm)
- Drive wheel
- 12.01 × 3.94 in (305 × 100 mm)
Ships by LTL freight with a $0 shipping fee, the next business day, Monday to Friday. Freight usually takes 1 to 3 business days. Every unit is palletized and strapped, so a forklift or a standard dually can take delivery.
Prefer to collect? Choose in store pick-up in Fresno: orders placed before 2:00 pm are processed the same day.
A 3-year limited warranty from the date of purchase covers defects in materials and workmanship under normal use. Read the warranty.
Split your purchase into bi-weekly or monthly payments with Shop Pay Installments at checkout. No hidden fees, and no impact on your credit score to apply. How financing works.
For warehouses, distribution centers and retail stockrooms.
Watch the video

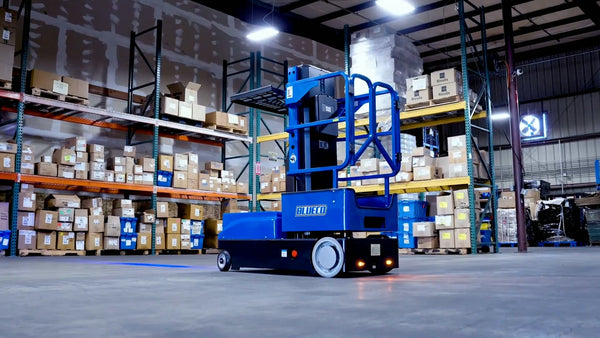

Drive and steer from the platform with the right-hand joystick, then raise it to 138 in to reach high shelving and storage. It recharges from a standard 110 V outlet.
- 138 inPlatform height
- 500 lbPlatform capacity
- 3-yearLimited warranty
A 138-inch platform. 500 lb capacity.
The order picker lifts its operator to 138 in on a stable work platform, together with boxes, orders and inventory, reducing the number of trips each job takes.
Ask about larger orders
Drag to turn it. On a smartphone, place a full-size order picker in your own space with AR and walk around it in real time.
- Platform height138 inMaximum height, 3,500 mm.
- Platform capacity500 lb227 kg, the operator and the order together.
- Carry deck200 lb91 kg, on a steel support frame.
- Plug type110 VA standard outlet, with the onboard charger.
Move smarter, move faster.

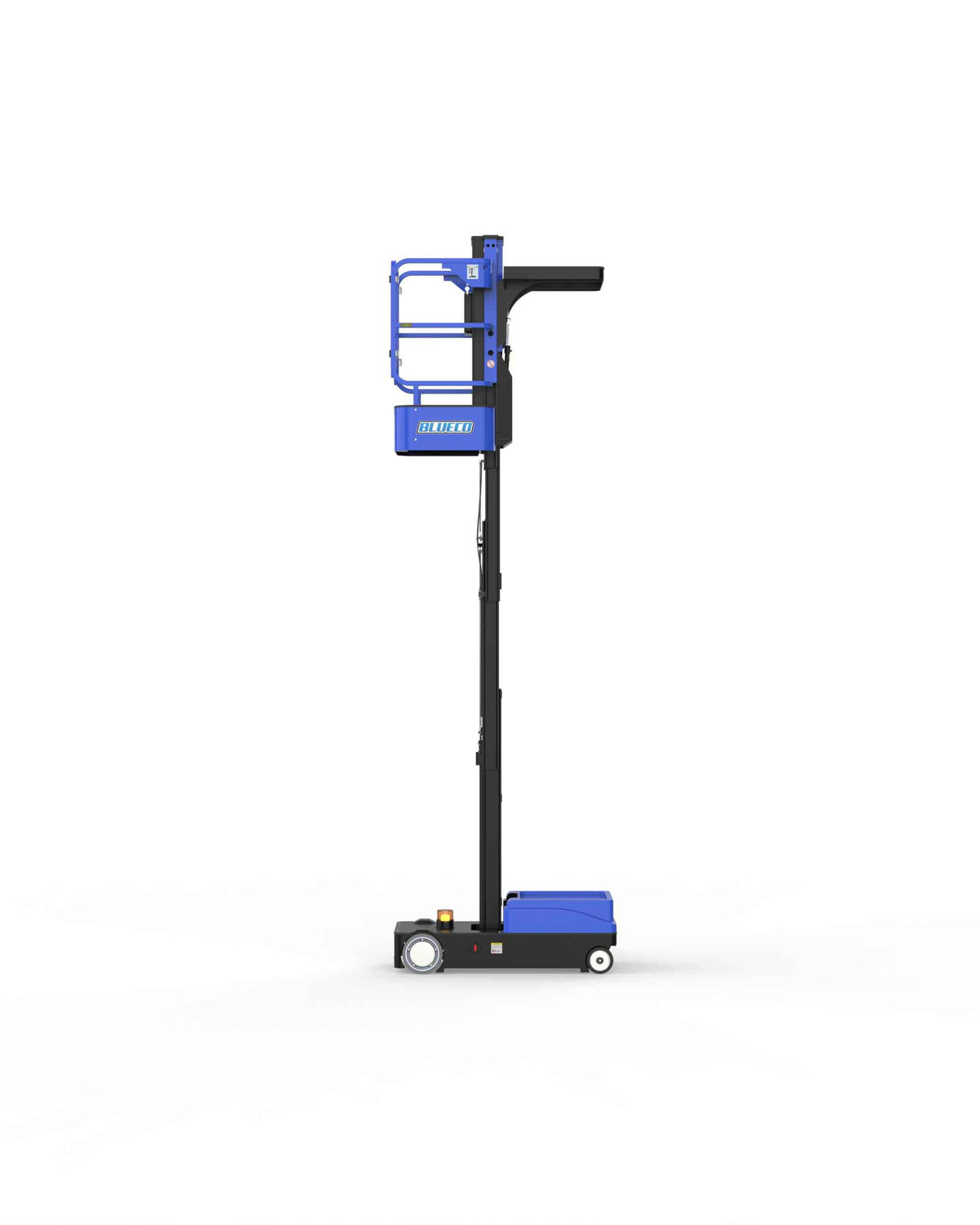

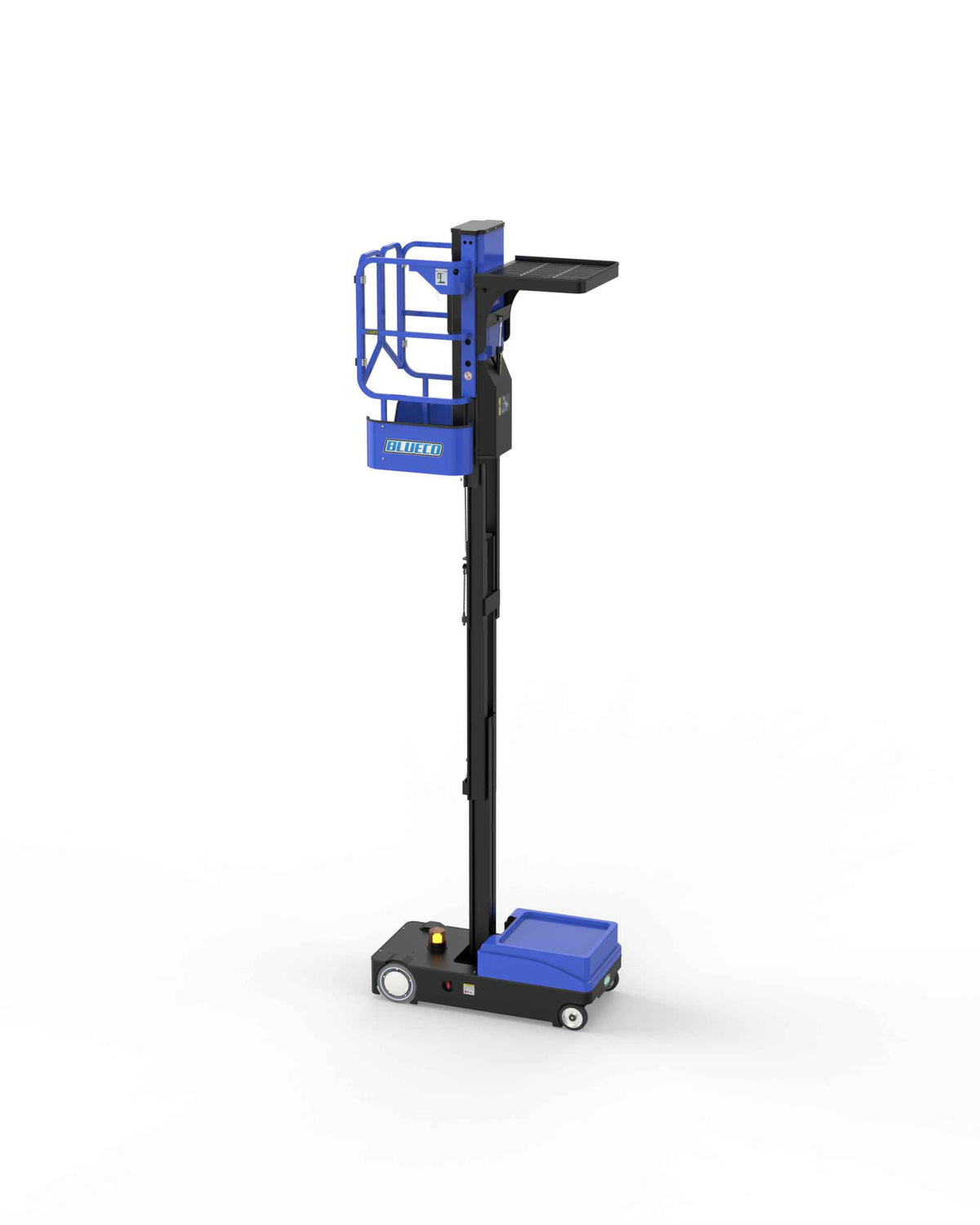

138-inch platform lift
The platform raises to 138 in (11.5 ft) and is rated for 500 lb, so operators ride up with boxes, orders and inventory in a single trip, with less need for ladders and repeated climbing.

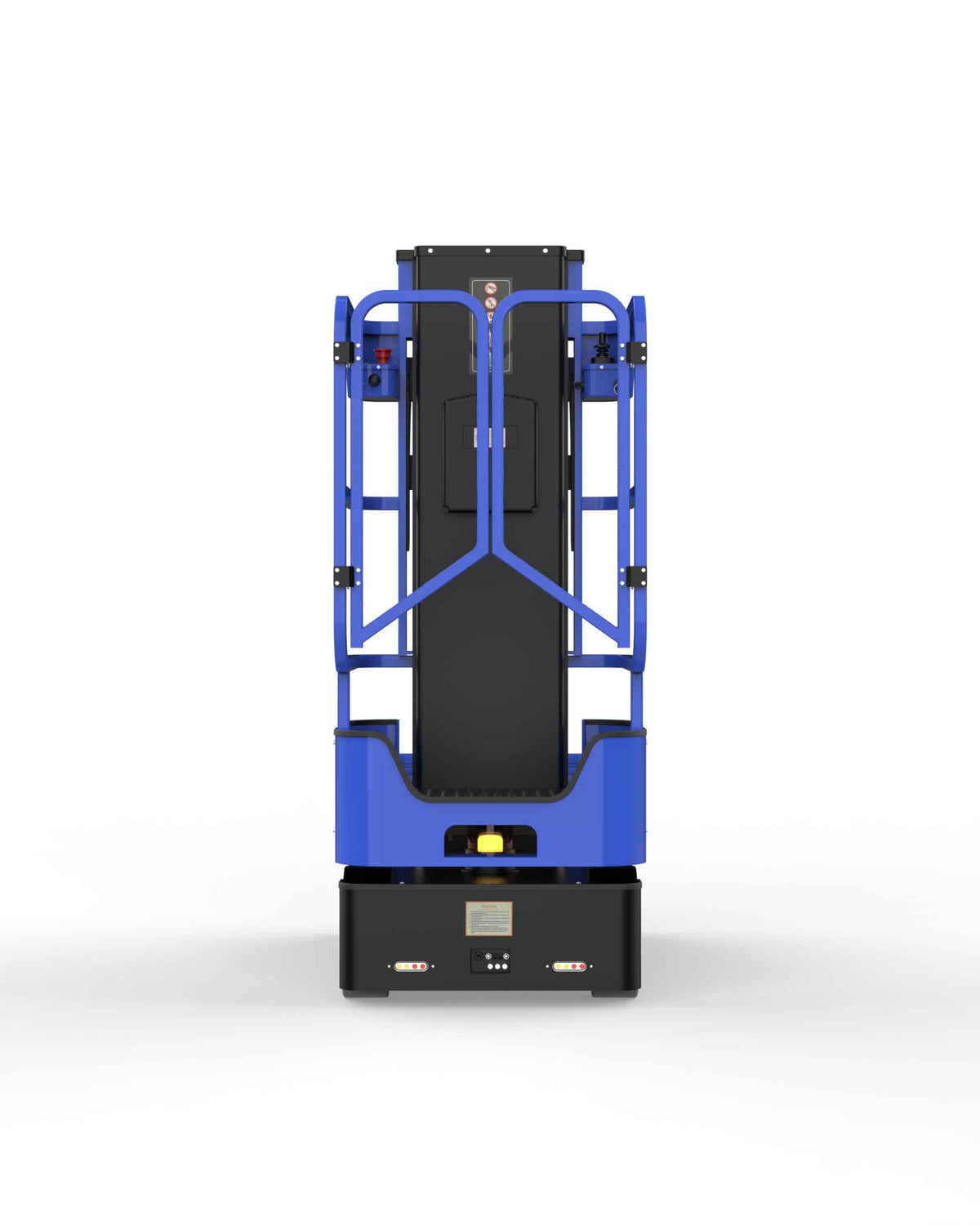

Low step-in, self-closing gates
The entrance is 21 in off the floor, with an integrated anti-slip entry step. Once the operator is in, the self-closing safety gates return to the closed position on their own.
Onboard charging
Plug the integrated charging cord into a standard 110 V outlet: no external charger needed. The onboard charger is rated 24 V, 15 A; the batteries are two 12 V, 108 Ah units.

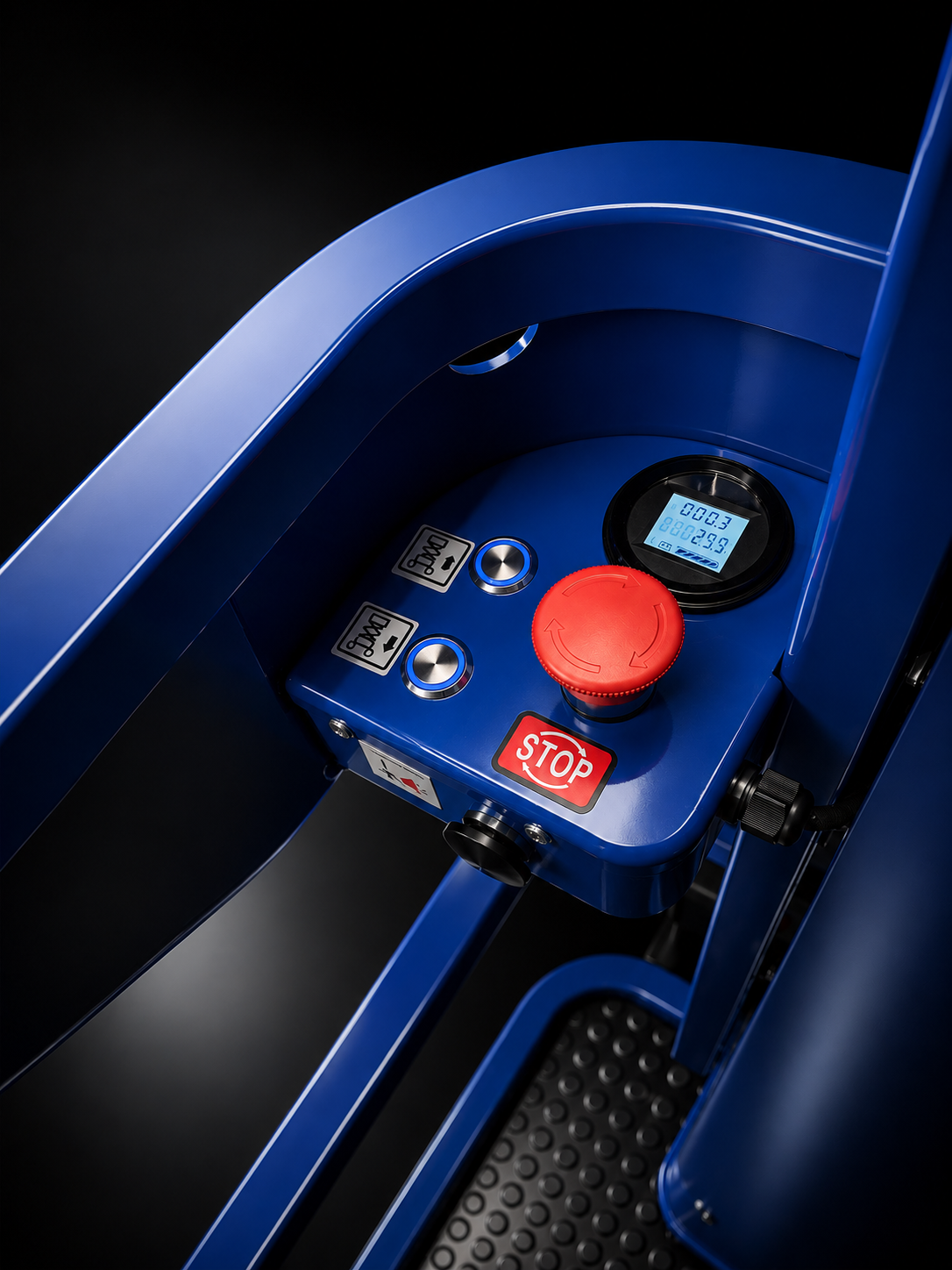

Left-hand control console
Raise and lower the material tray, sound the horn and check the full-color LCD for battery charge, system voltage, hour meter and machine diagnostics, all within reach of the left hand.

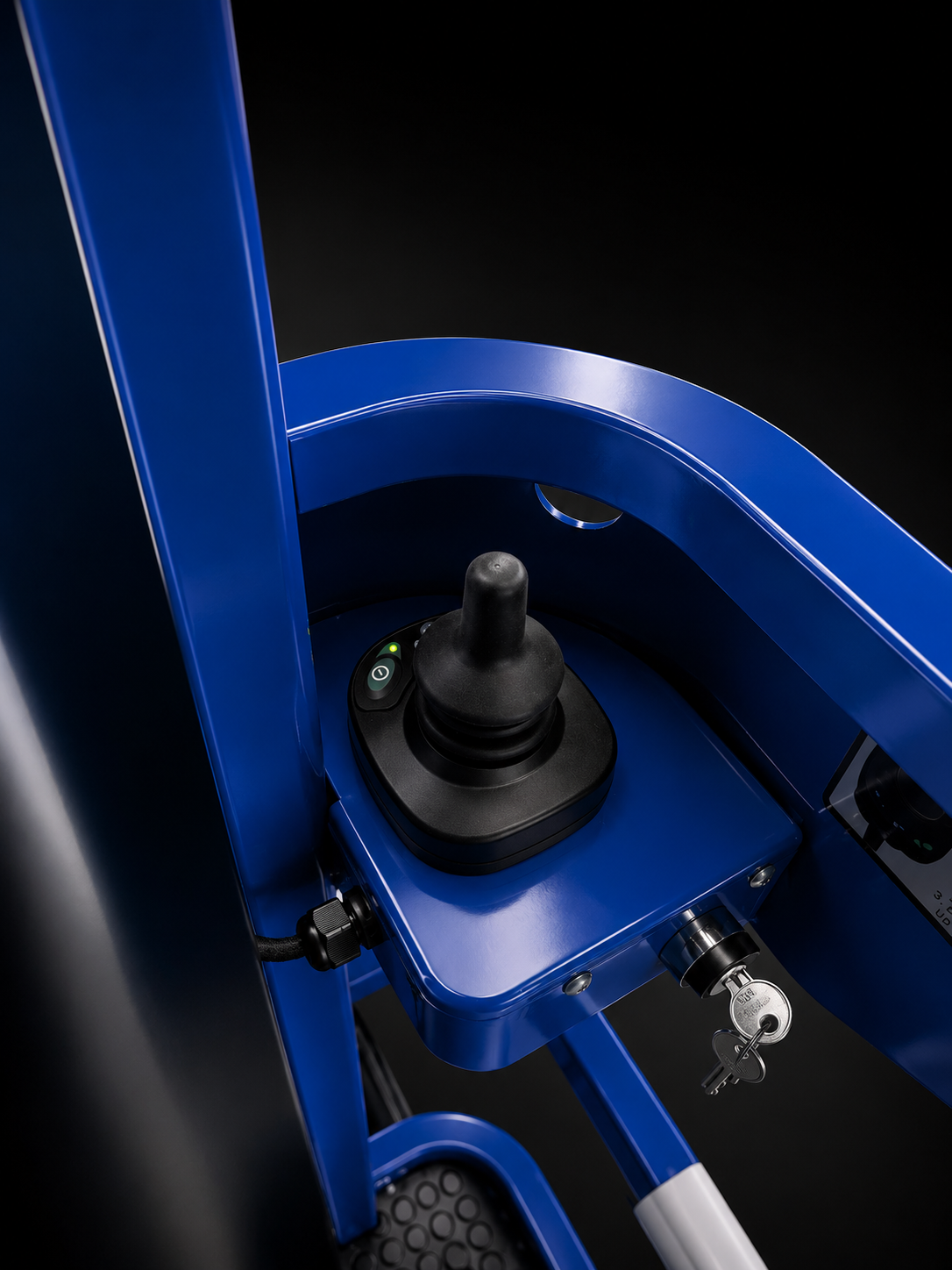

Right-hand drive joystick
One joystick runs forward and reverse travel, steering, and platform lift and lower, so the right hand stays on a single control.
Safety lights
On the front end of the truck, a blue LED projects the base's driving path, whether the platform is lowered or raised. The continuous base detection light marks a visible safety zone around the machine for people nearby.
What goes into the order picker.
Operating safety light
Base detection · Visible safety zone
Lift and lower shelf controls
Fully electric · LCD display
Drive and lift controls
Smooth, responsive · Joystick
