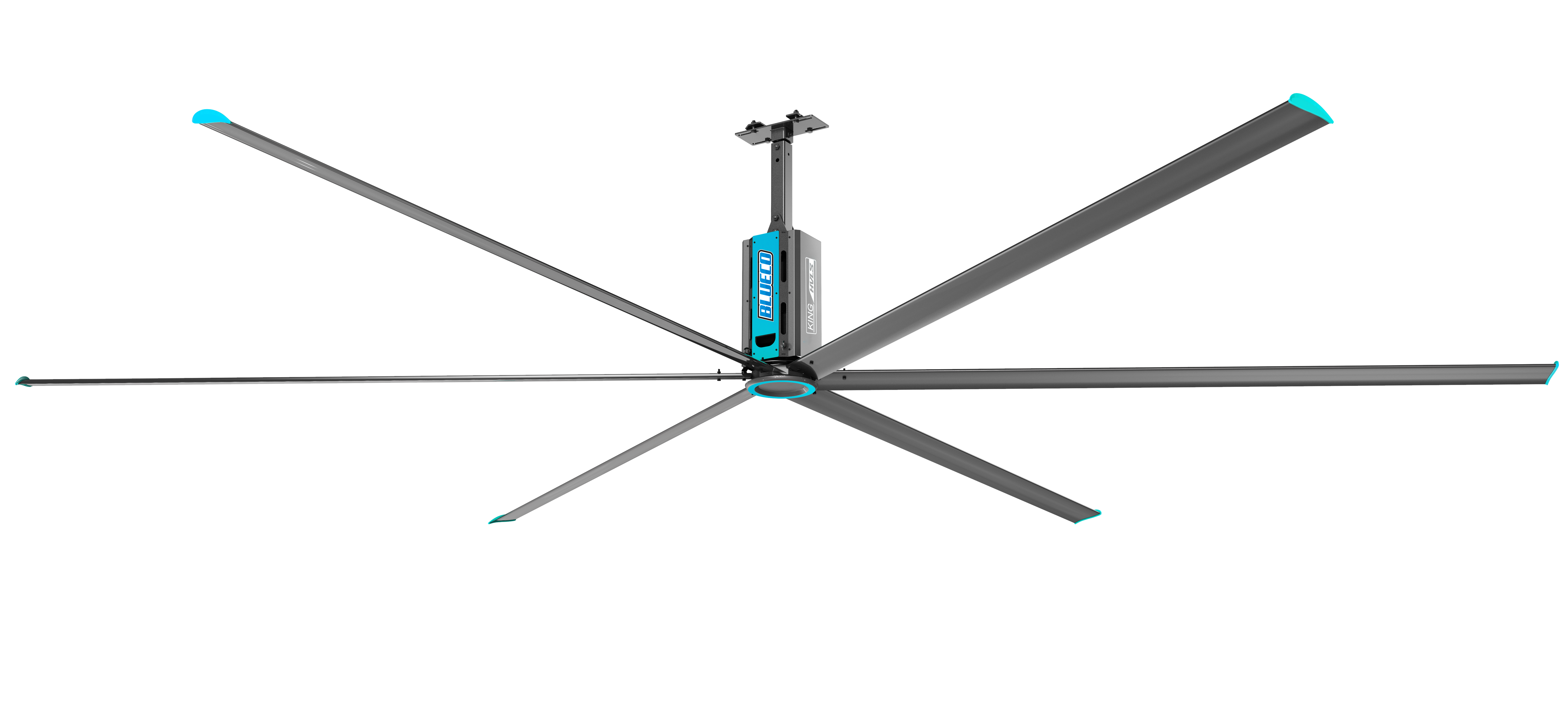

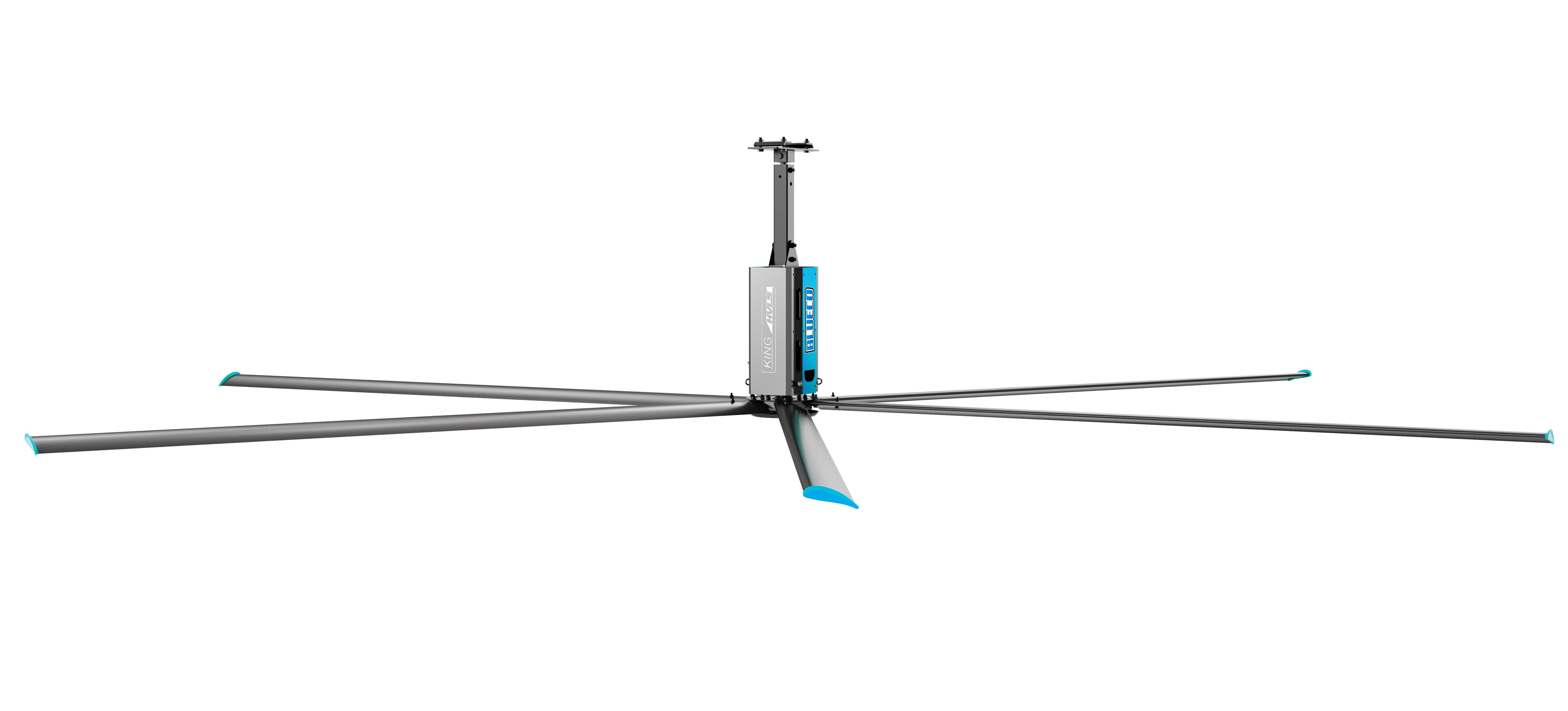

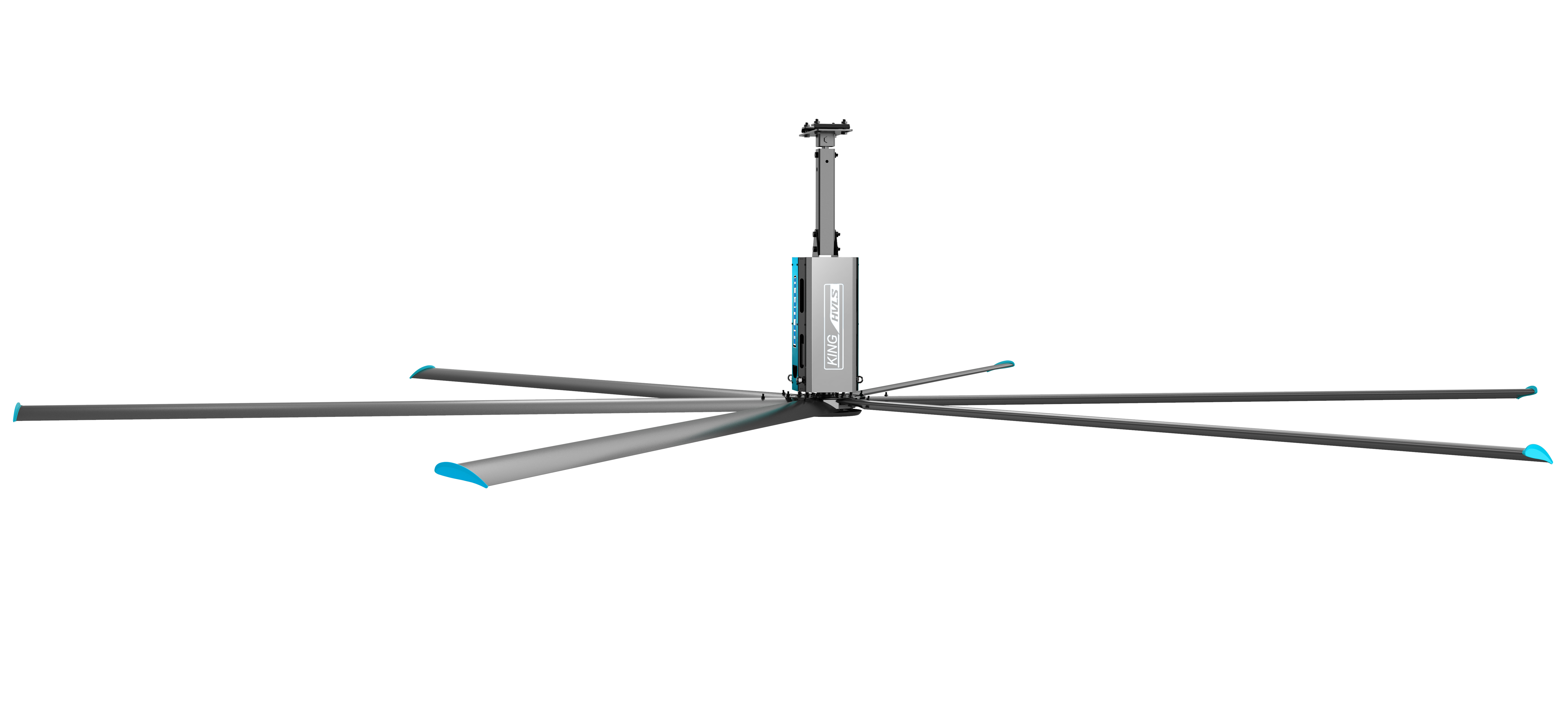

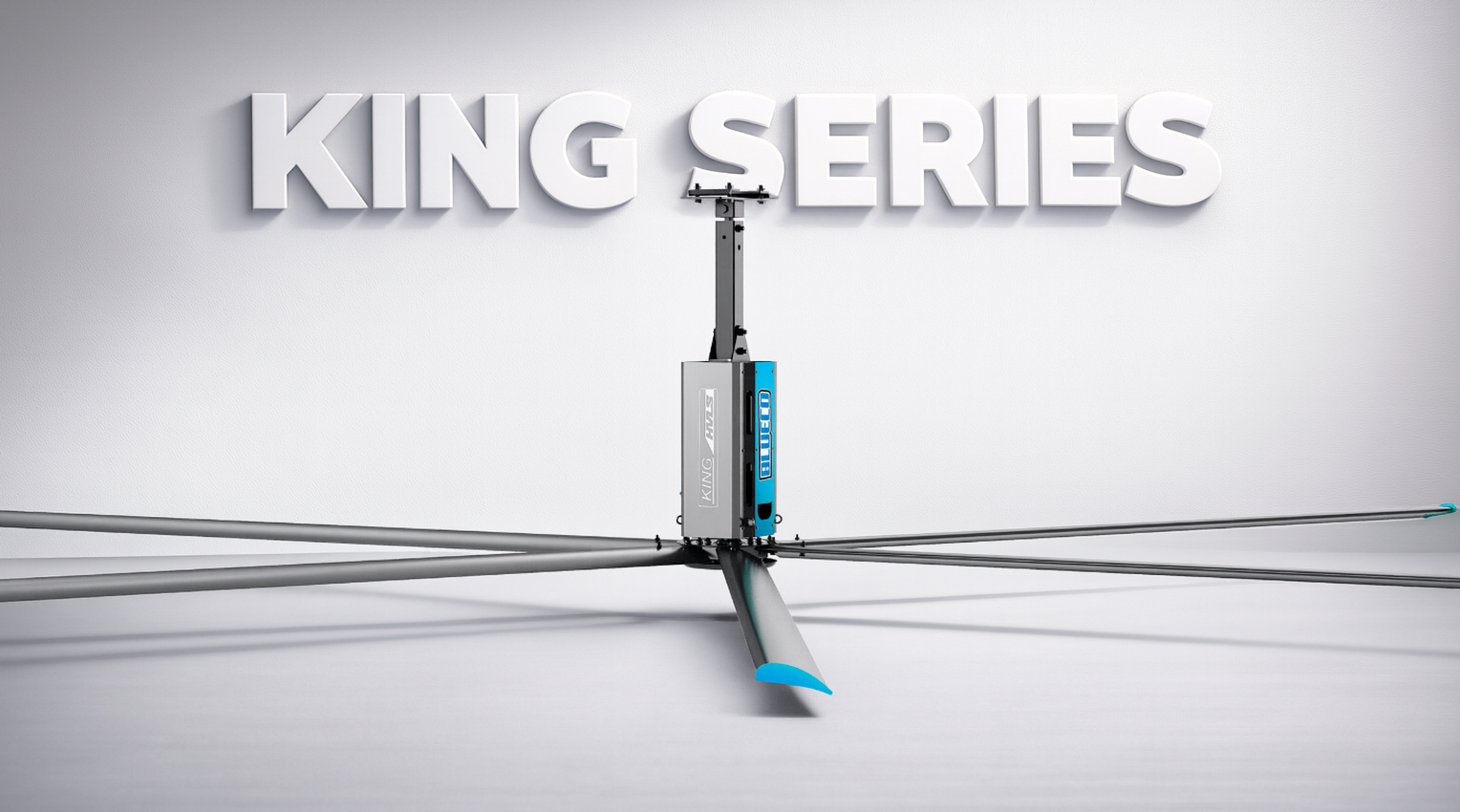

KING SERIES 18FT INDUSTRIAL POWER HVLS FAN

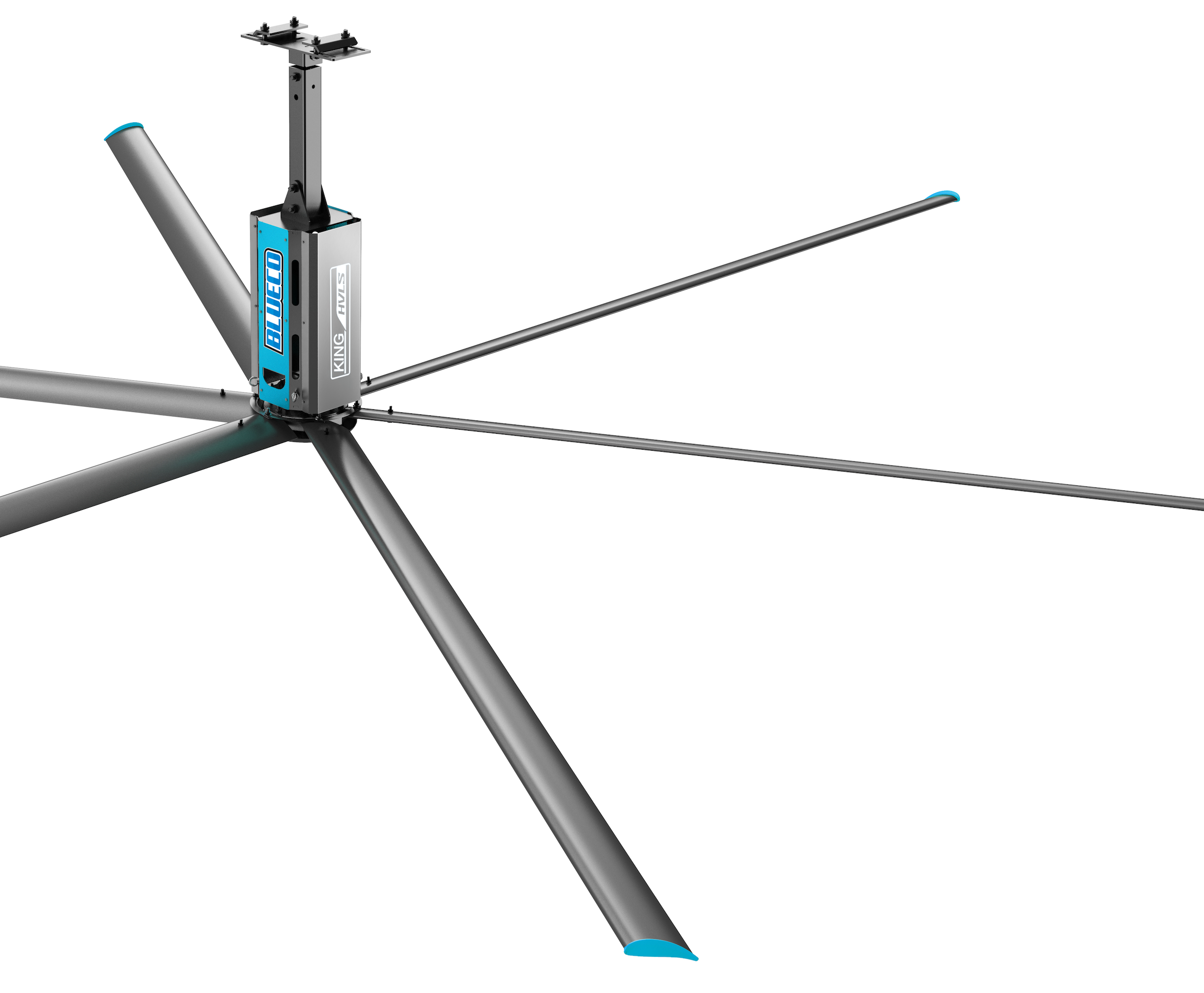

An 18 ft HVLS fan with six aviation-grade aluminum blades, variable speed control at 20–63 rpm and 7,350 sq ft of coverage. It hangs from an H-beam on an 8 ft pole and runs on 1.5 kW from a 220 V single-phase supply.
- Fan diameter
- 18 ft (5.49 m)
- Coverage per fan
- 7,350 sq ft (683 m²)
- Blades
- 6
- Speed range
- 20–63 rpm
- Speed control
- Variable
- Power
- 1.5 kW
- Horsepower
- 2.0 hp
- Voltage
- 220 V
- Phase
- Single
- Net weight
- 210 lb (95 kg)
- Pole length
- 8 ft (2.44 m)Other pole lengths to order.
- Mount
- H-beam
- SKU
- AV18
Ships by LTL freight with a $0 shipping fee, the next business day, Monday to Friday. Freight usually takes 1 to 3 business days. Every unit is palletized and strapped, so a forklift or a standard dually can take delivery.
Prefer to collect? Choose in store pick-up in Fresno: orders placed before 2:00 pm are processed the same day.
A 3-year limited warranty from the date of purchase covers defects in materials and workmanship under normal use. Read the warranty.
Split your purchase into bi-weekly or monthly payments with Shop Pay Installments at checkout. No hidden fees, and no impact on your credit score to apply. How financing works.
For warehouses, gyms and manufacturing facilities.
Watch the video
Hang it from an H-beam and set the speed anywhere from 20 to 63 rpm. Six blades span 18 ft and cover 7,350 sq ft per fan, on 1.5 kW from a single-phase 220 V supply.
- 18 ftFan diameter
- 7,350sq ft per fan
- 3-yearLimited warranty
18 feet across. 7,350 square feet.
The King 18 ft covers 7,350 sq ft per fan, with variable speed control at 20–63 rpm. It is designed to improve air circulation and eliminate hot and cold spots in warehouses, gyms, manufacturing facilities and large commercial spaces.
Ask about larger orders
Drag to turn it. On a smartphone, place a full-size King 18 ft in your own space with AR and walk around it in real time.
- Coverage per fan7,350 sq ft683 m² per fan.
- Fan diameter18 ft5.49 m, six blades.
- Speed range20–63 rpmVariable speed control.
- Power1.5 kWOn single-phase 220 V.
Massive airflow. Minimal energy.

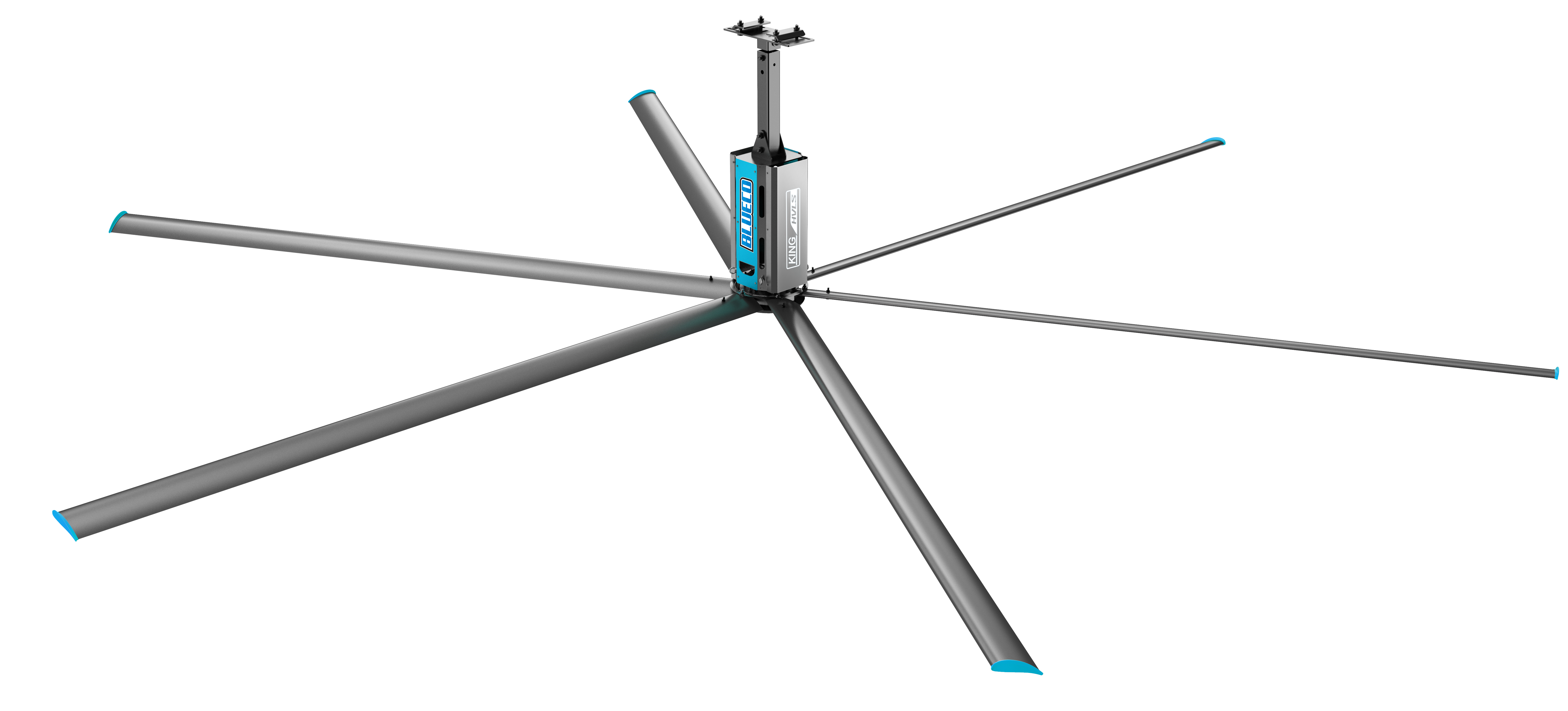

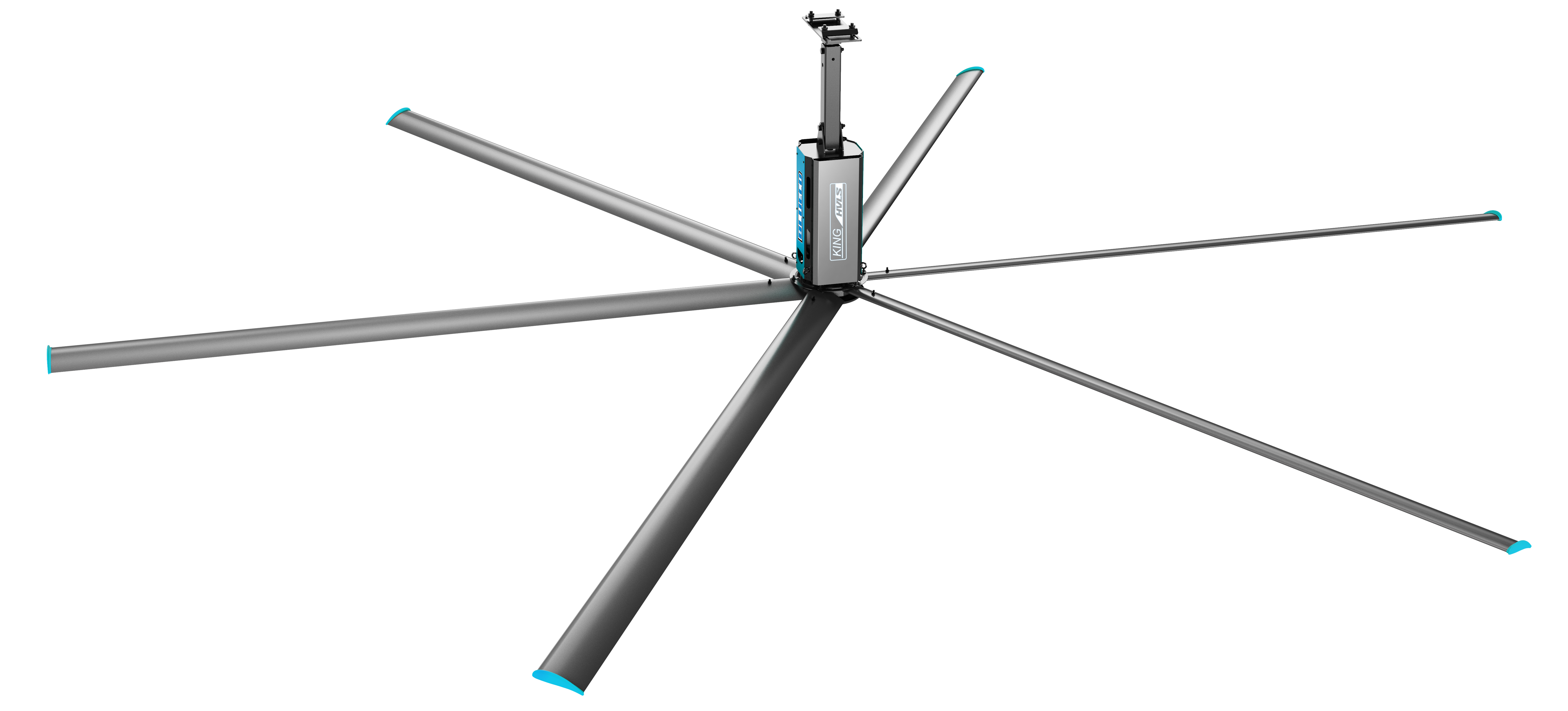

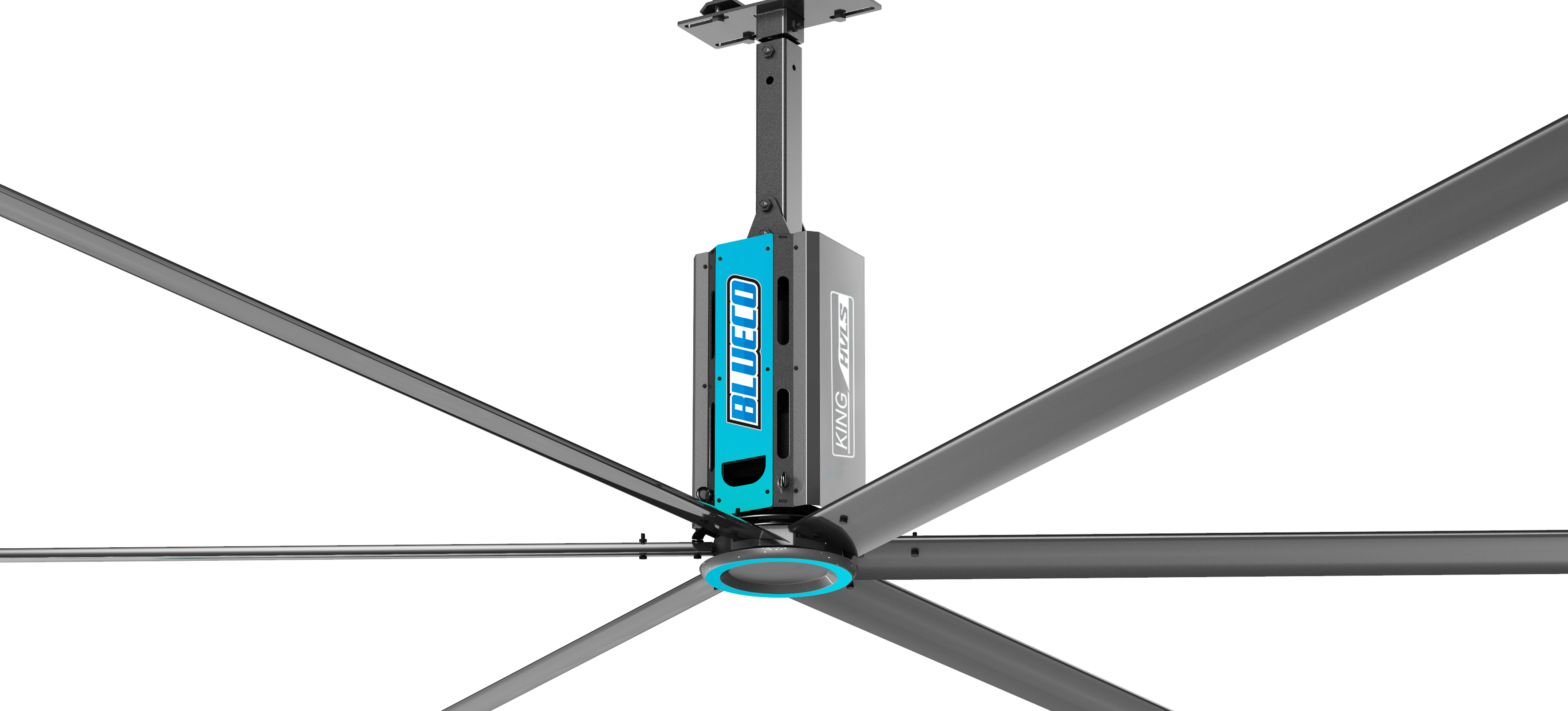

Six aviation-grade blades
Six blades of aviation-grade aluminum alloy span 18 ft. The alloy gives the fan its SKU: the AV in AV18.
Fluorocarbon finish
The King 18 ft is finished in fluorocarbon instead of standard powder coating, for a more durable finish that resists weather, UV, corrosion and fading. The color is Midnight Graphite Gray.

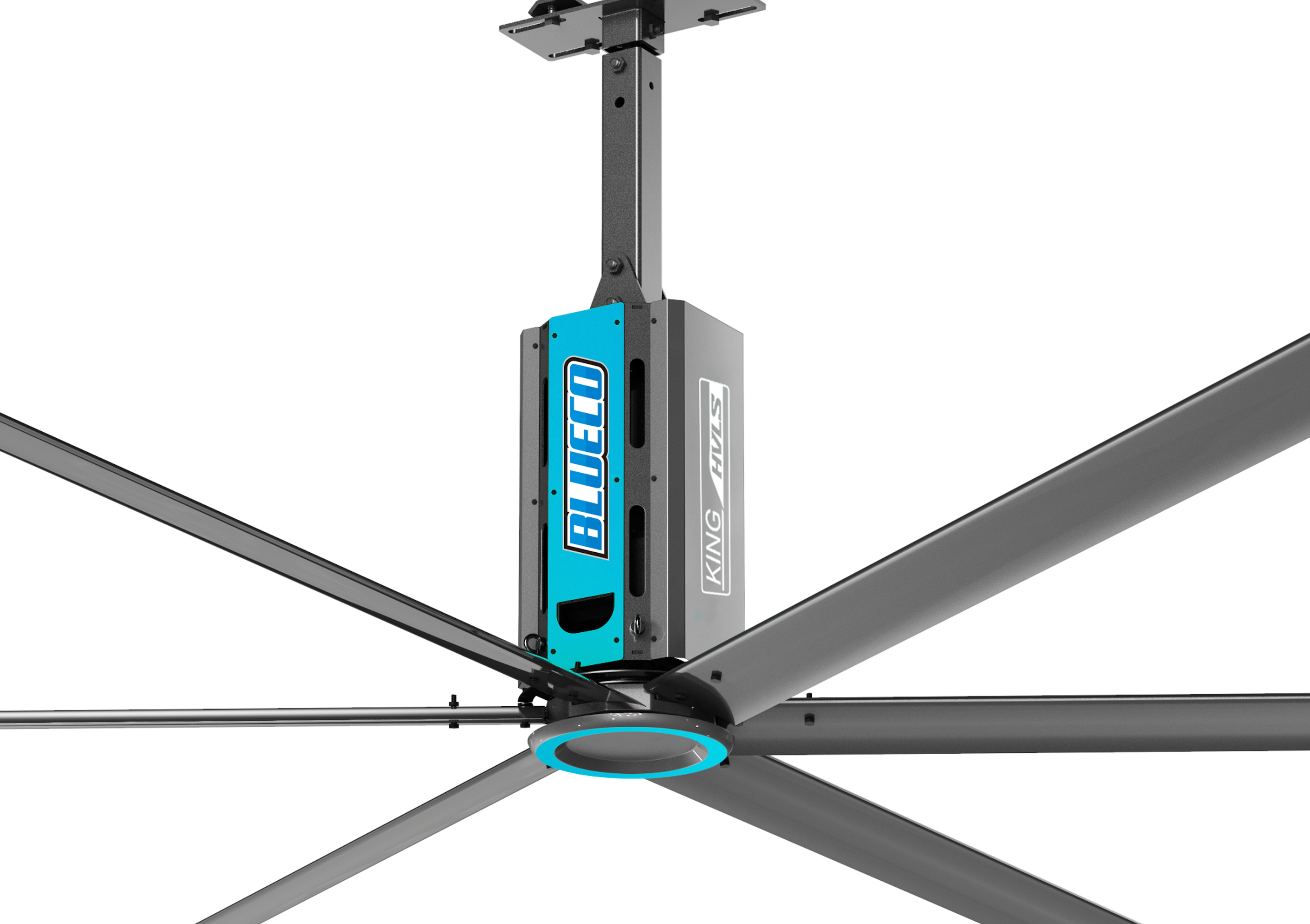

Forged hub wheel
The hub wheel is forged and T6 heat-treated, and its double-chassis design keeps it durable and steady.
Cardan joint
Modeled on the human joint, the Cardan joint lets the fan find its own vertical position whatever the slope of the building, and it reduces vibration while the fan runs.
Variable speed, 20–63 rpm
Variable speed control runs the six blades anywhere from 20 to 63 rpm. The control panel comes in the box.
Energy-efficient airflow
One fan covers 7,350 sq ft on 1.5 kW from a 220 V single-phase supply, and it is designed to improve air circulation and reduce HVAC energy costs year-round.
What goes into the King 18 ft.

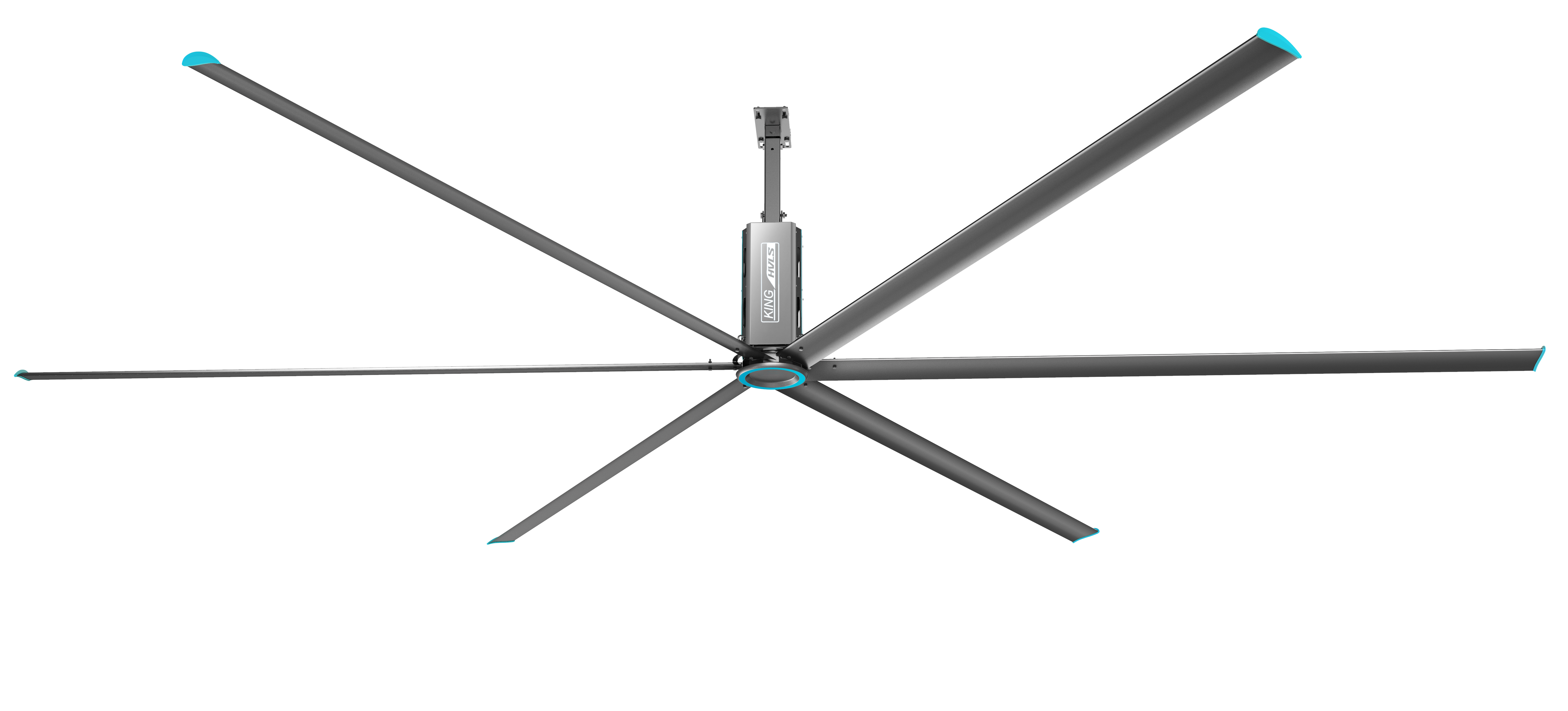

New paint finish
Same fan · Fluorocarbon finish

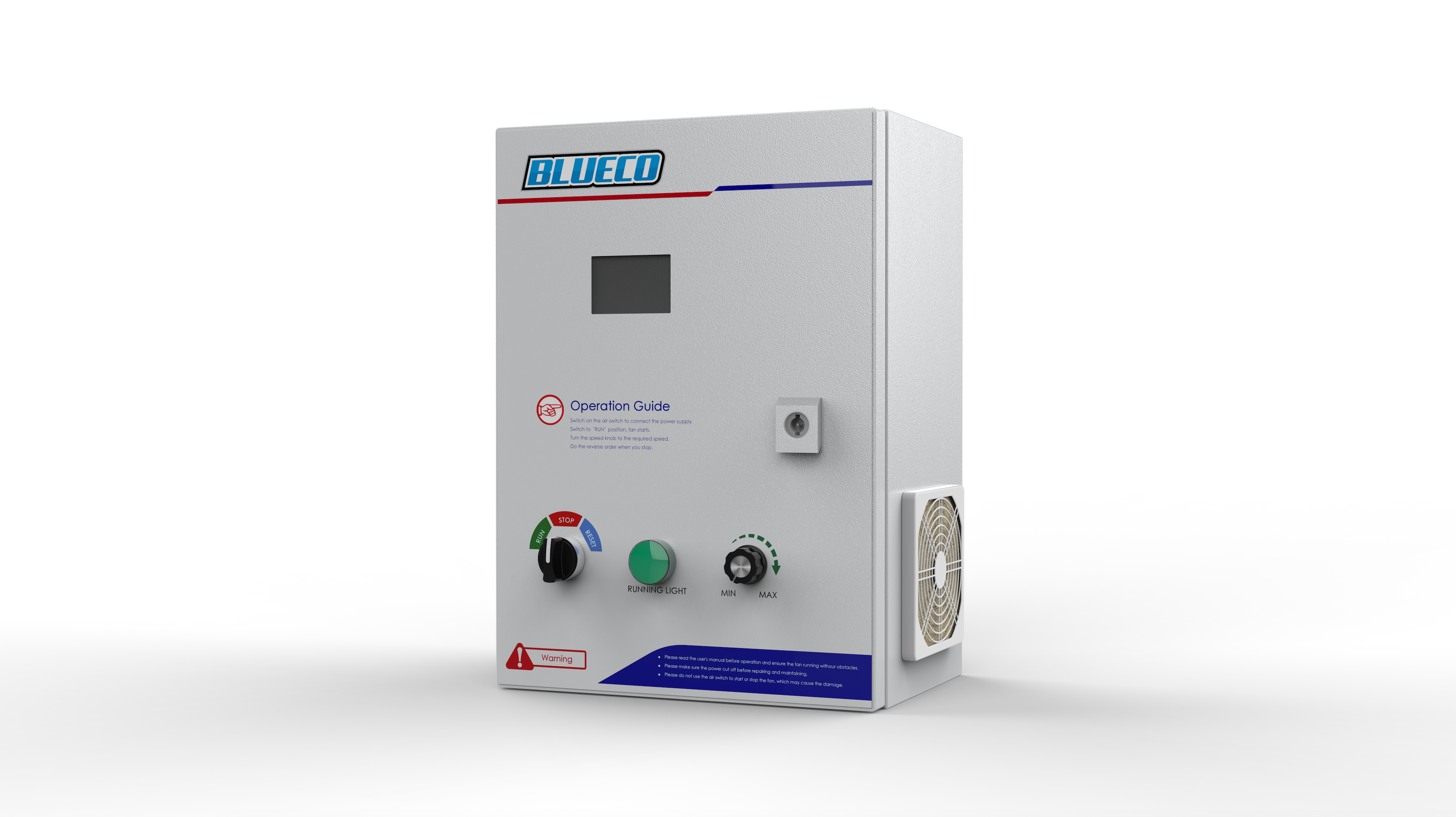

Control Panel Davnoss
Efficient · Easy to use
Tension cables
In the box · With installation hardware
The HVLS fans, side by side.
Other pole lengths to order.
