TAKE CONTROL
You need exceptional control to meet the challenges of efficiently moving and storing product in tall or limited space. The innovative controls and compact design of the BCO-EPS Series electric walkie straddle stacker enables operators to maneuver with ease & safety. Creep controls at your finger tips to reduce torque on heavier loads at a taller reach to maximize safety for all skill level operators. Emergency bump stop to ensure safety is priority. "Control at your fingertips"
BCO-EPS
specifications
MODEL | ELECTRIC STRADDLE LEG STACKER |
---|---|
SKU | BCO-EPS |
Load capacity | 3,306.29lbs |
Load center distance | 23.62" |

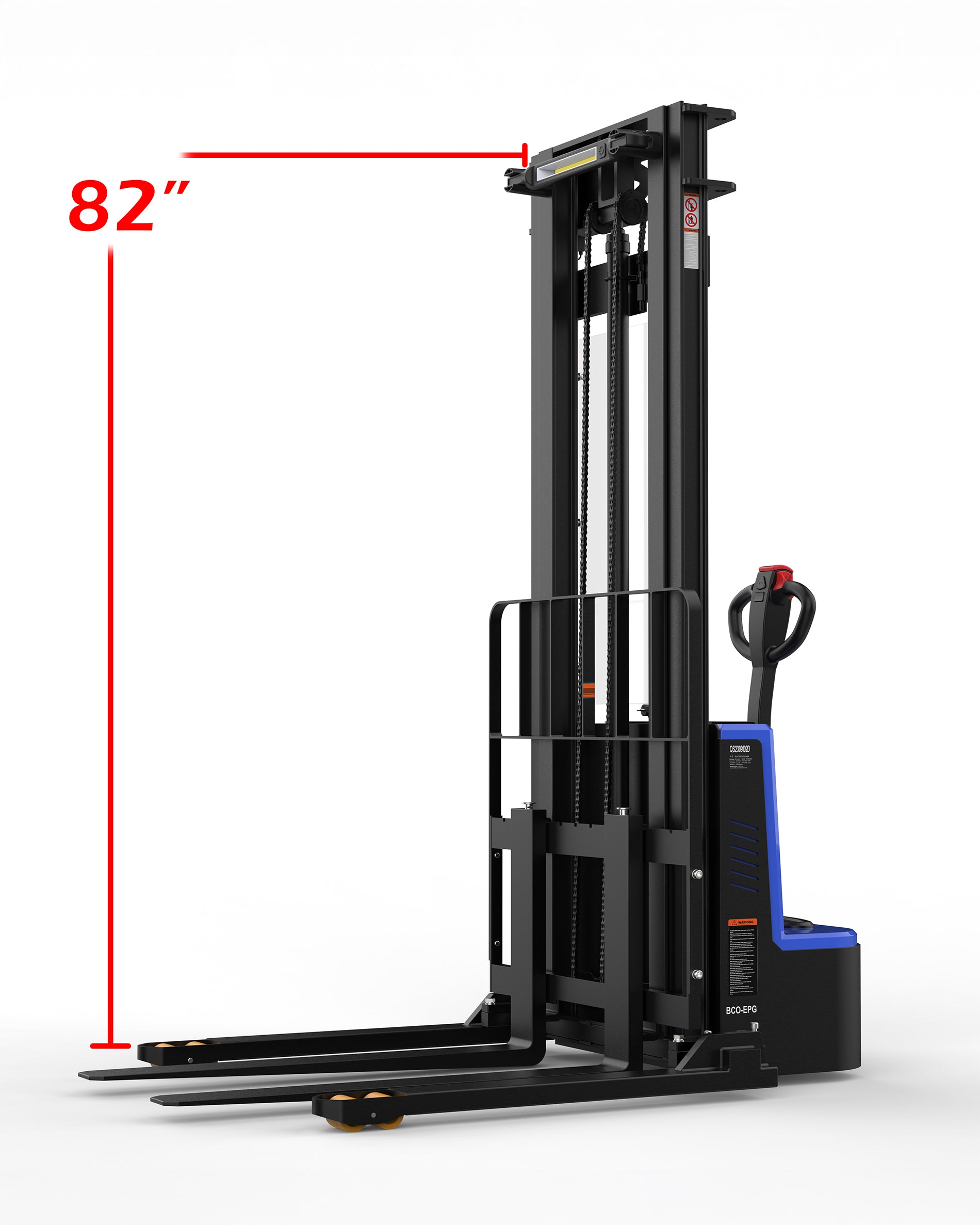

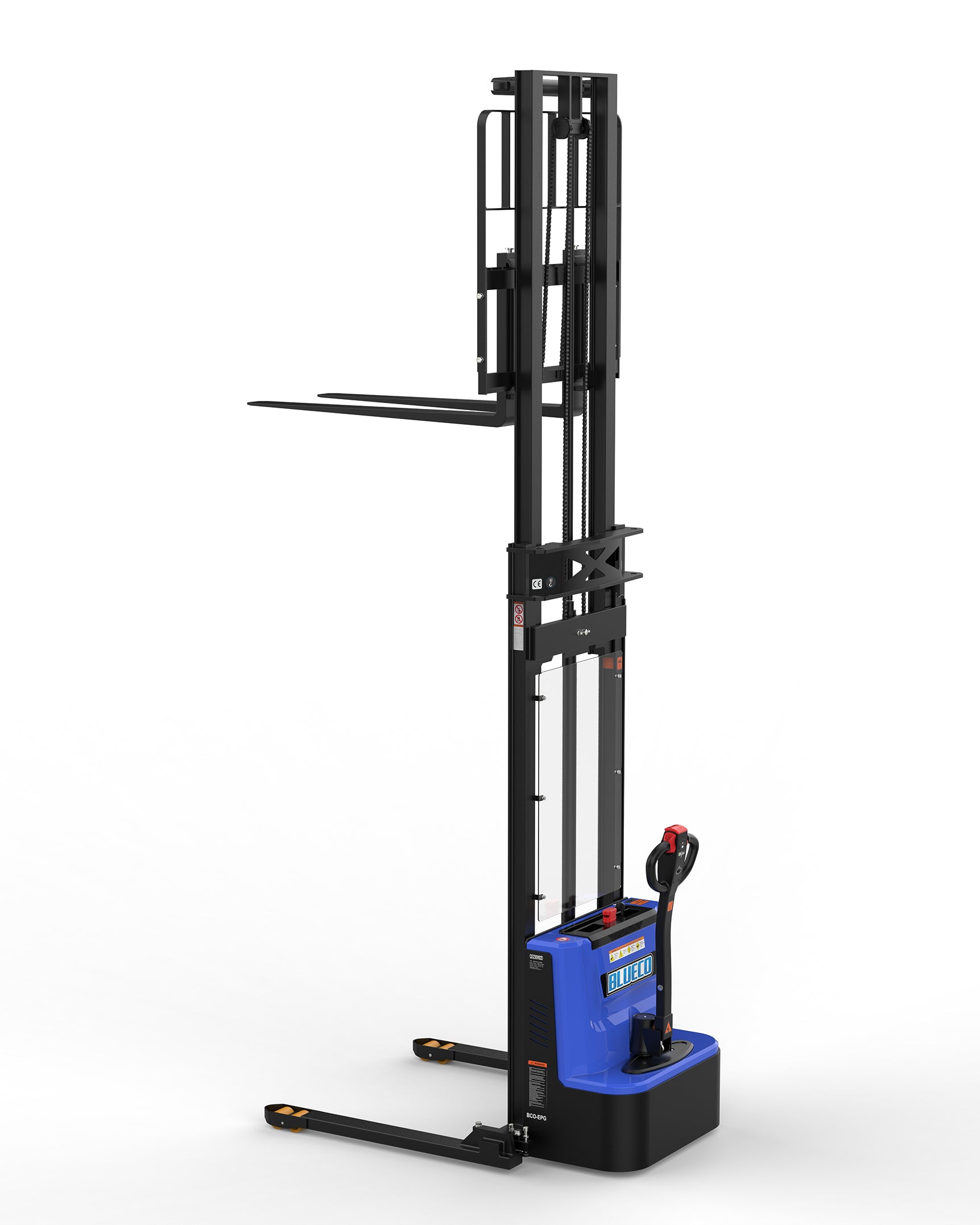

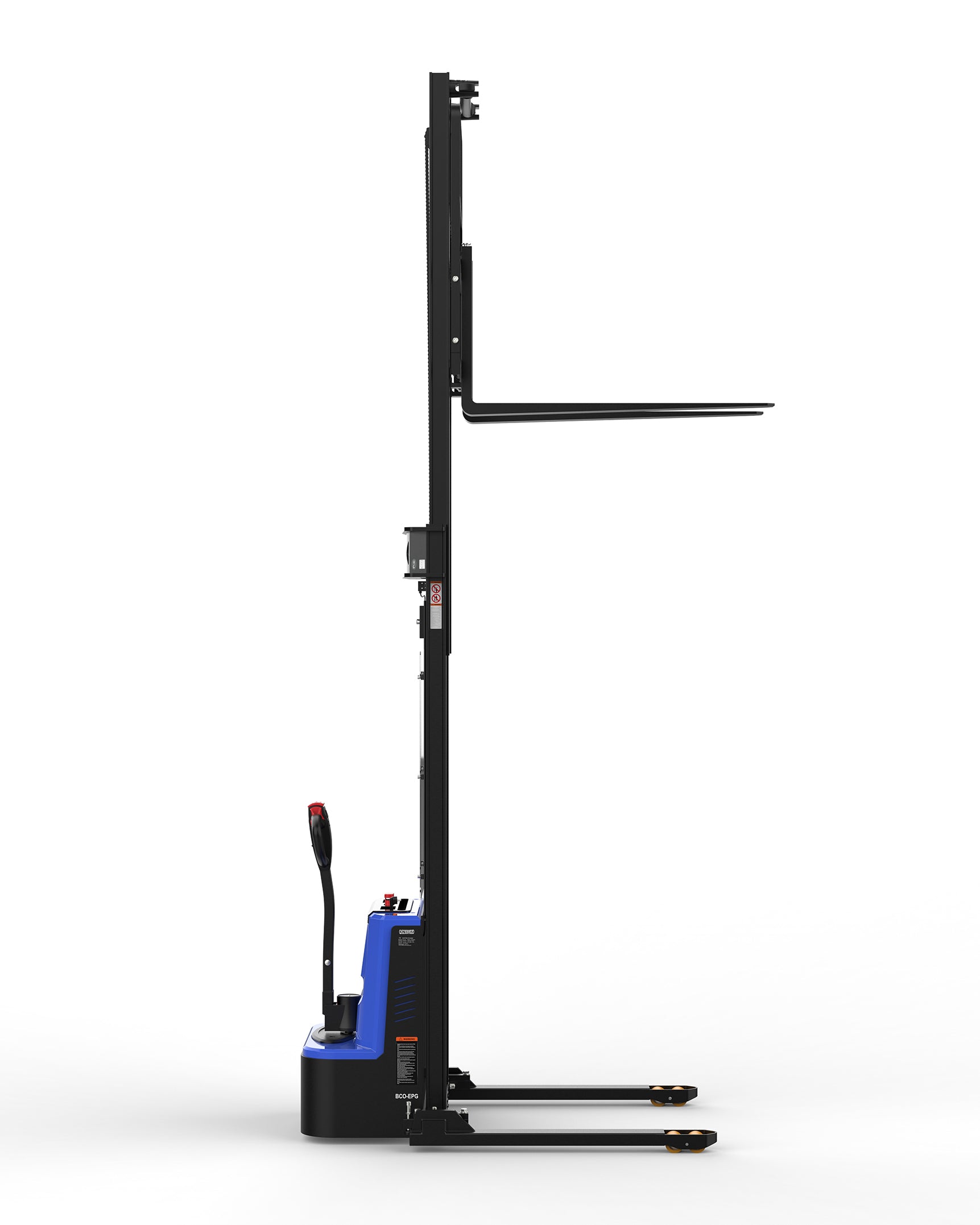

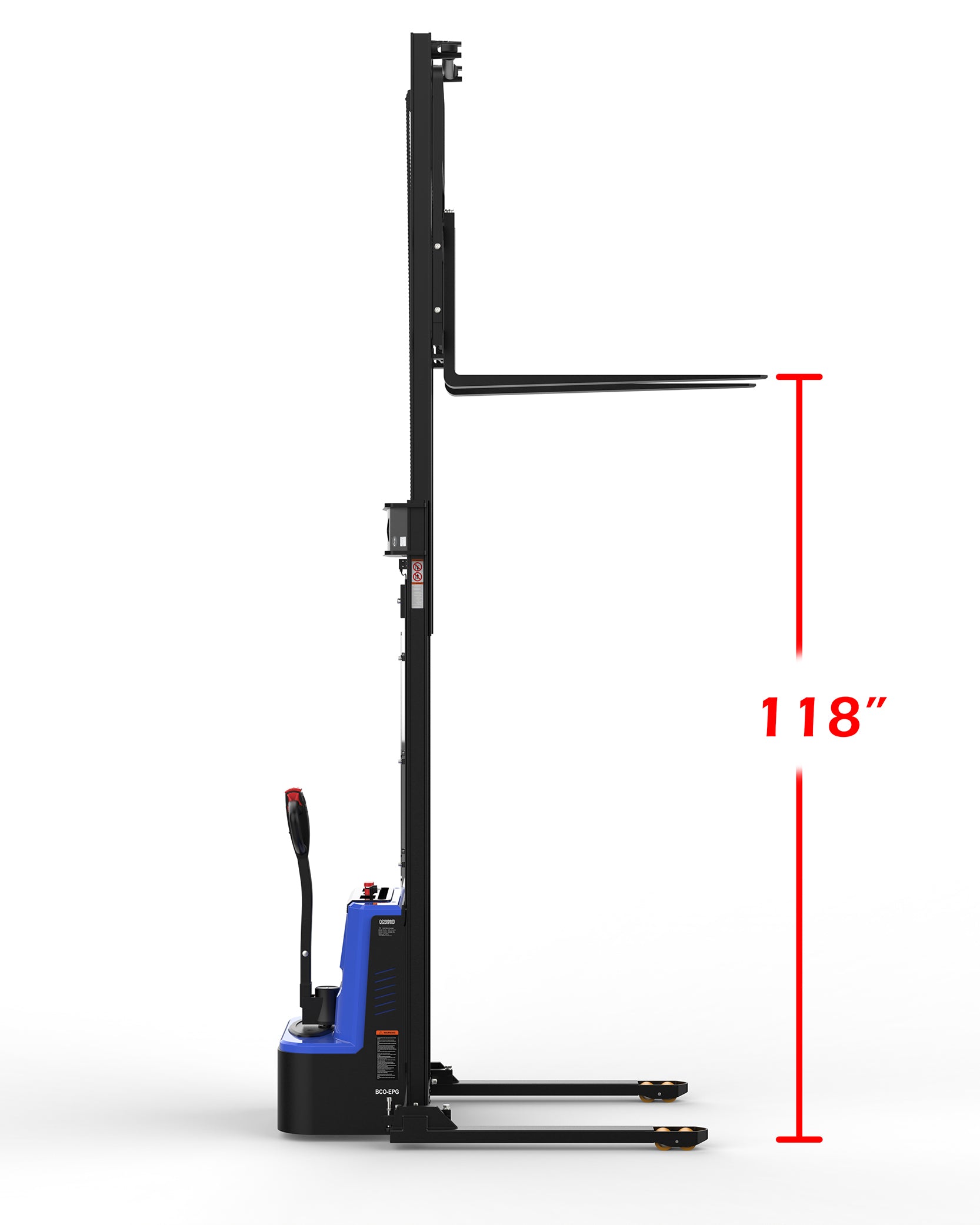

Maximum lift height | 118" |
Lowest point to ground | 1.3" |
minimum height of cargo forks | 3" |
Fork length | 44.29" |
Driving speed km/h | 3/4.3 |
Stock fork lifting speed mm/s | 70-105mm |
Battery/ Battery charger | 12V/80Ahx2/24V10A |
Walking motor | 24V/750W |
Lift motor | 24V/2200W |
Net weight | 1,380lbs |
Overall length | 69" |
Overall width | 32" |
Features
Key
Upgraded magnetic key start up for more reliable long lasting durability.
Forks
44.29" length with adjustable width for all size pallets and unique load demands.

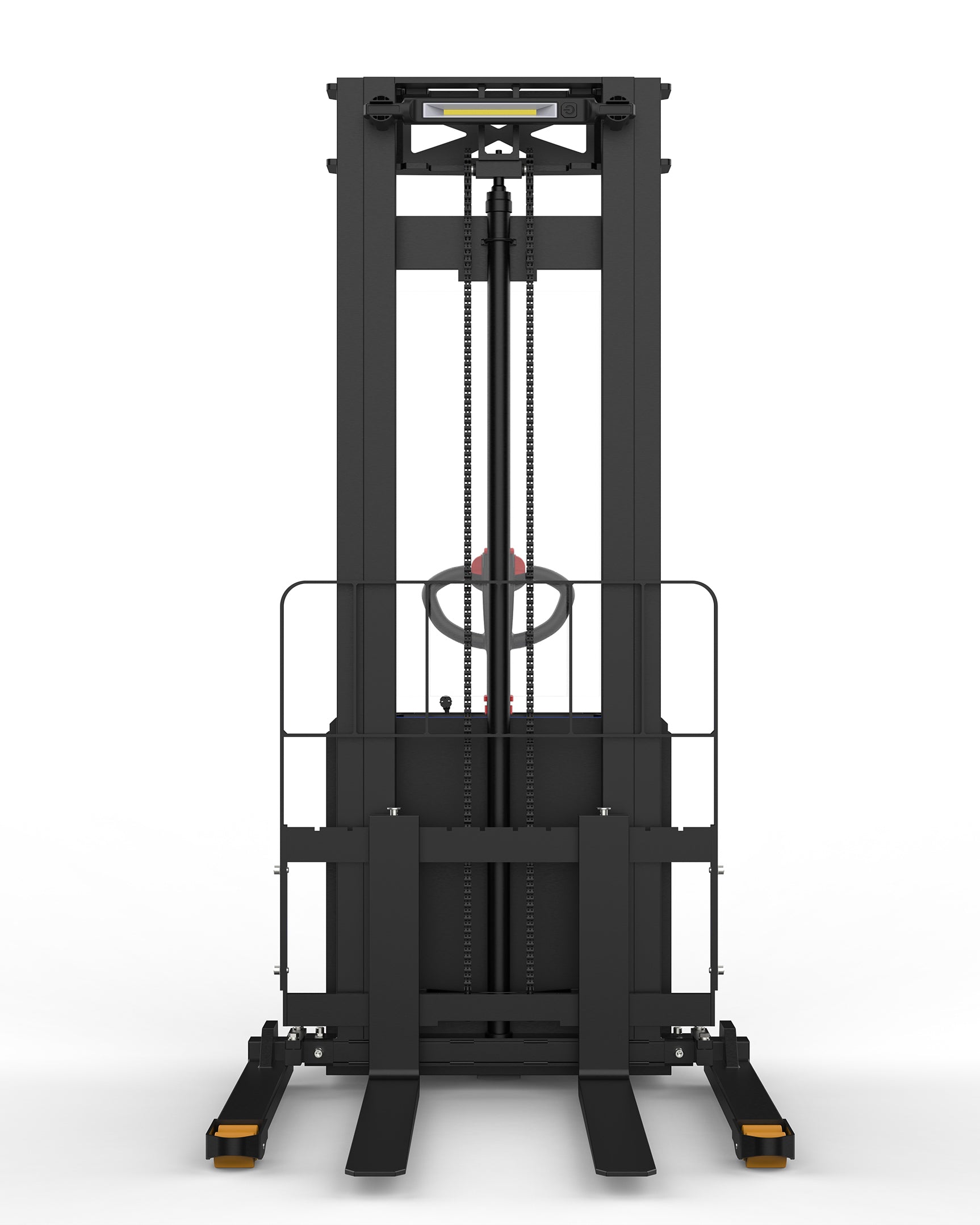

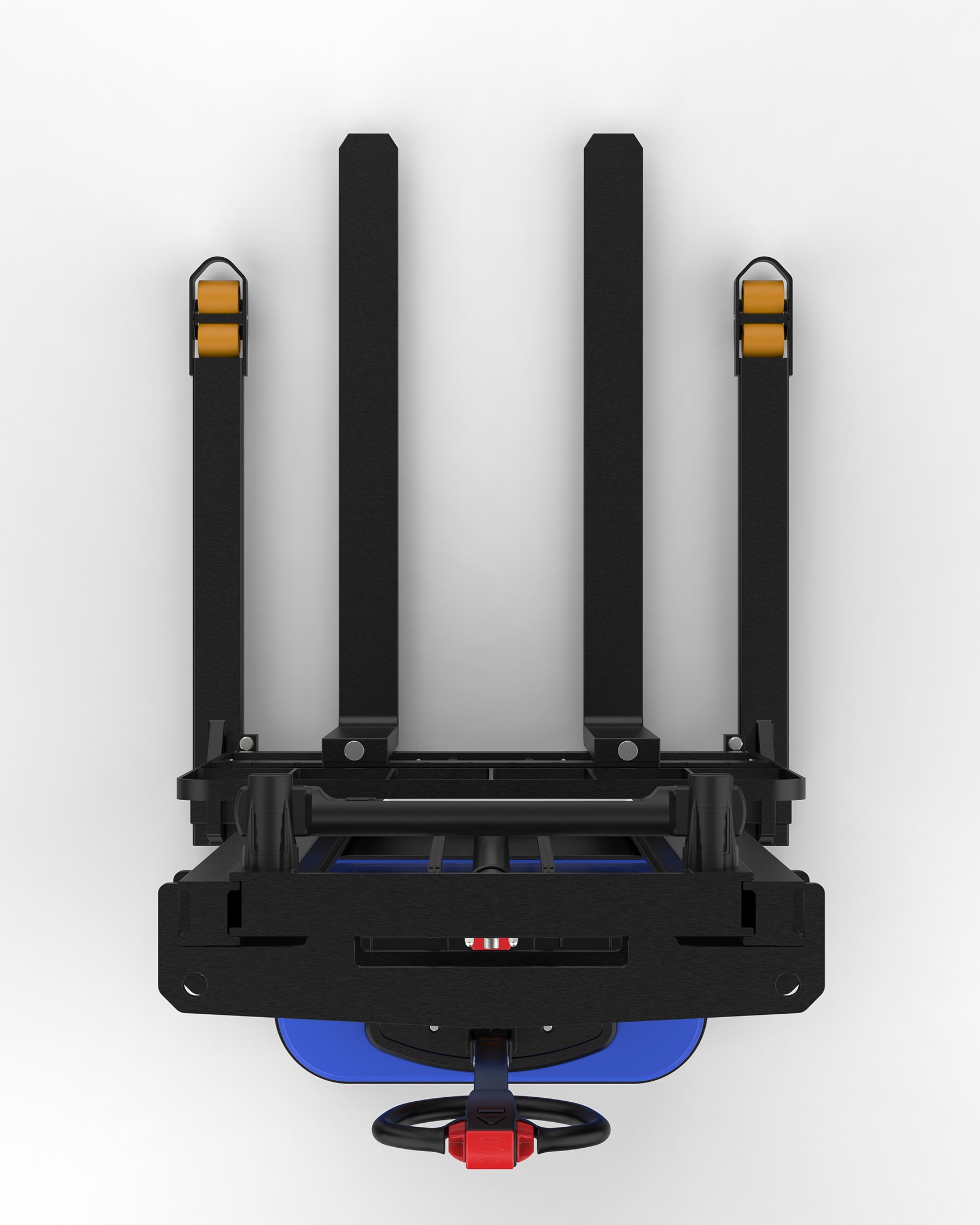

Straddle legs
38" - 50" adjustable straddle legs for load handling on all size pallets with maximum safety for a wider base to handle heavier load logistics at greater handling heights.

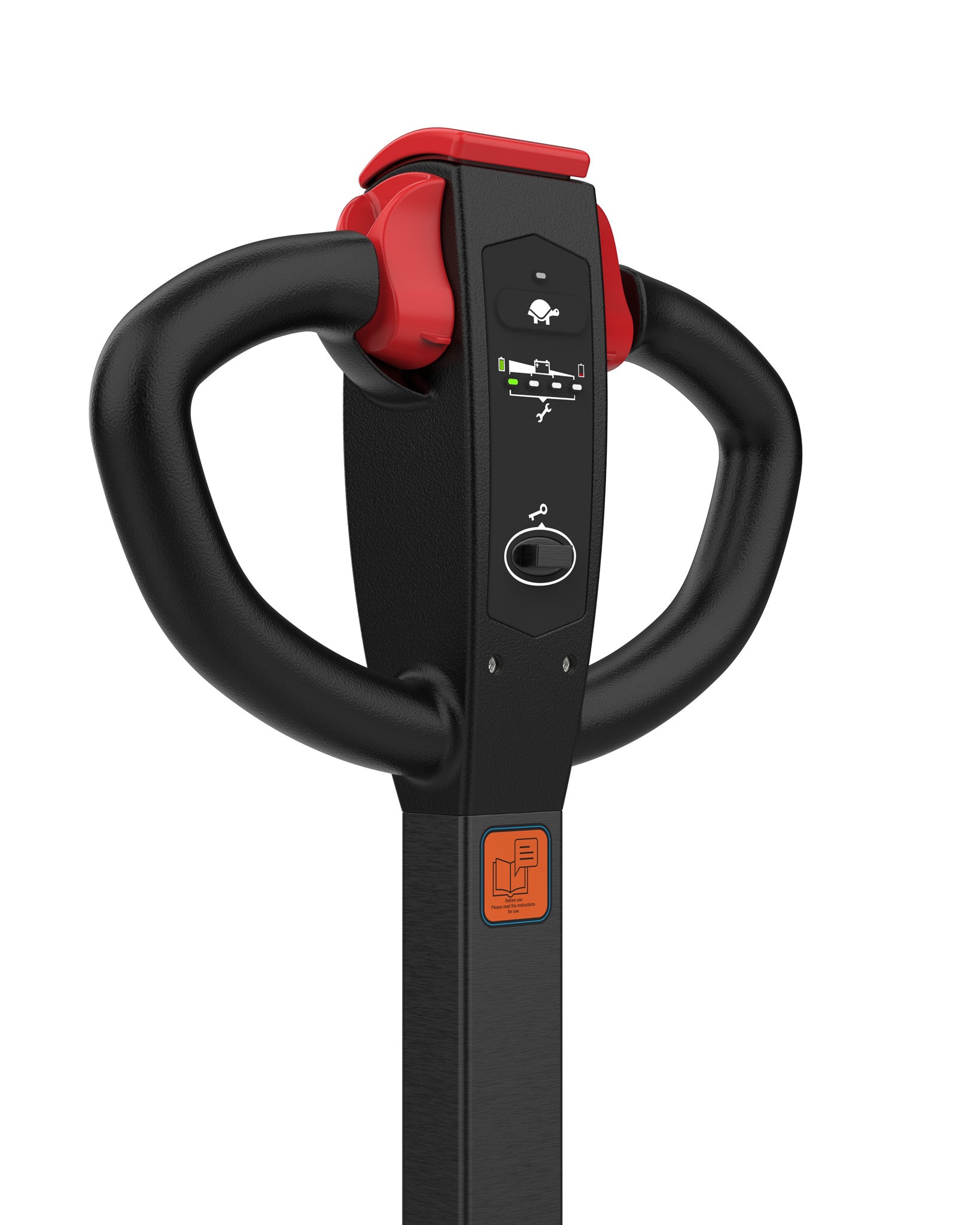

Speed control
Step-less speed control at your finger tips. Almost like a throttle, Giving more push on the red throttle control speed regulator will speed up or slowly creep the more throttle that is given on the red speed control handle. Click to creep icon (turtle) on the handle to reduce torque when operating heavy loads from maximum lifting heights.
Working light
A BLUECO exclusive, The first to integrate an industrial working light for all logistics applications. To ensure work demand and safety no matter the conditions day or night.
Emergency shut off
Emergency bump stop located on the handle for maximum safety during operations.

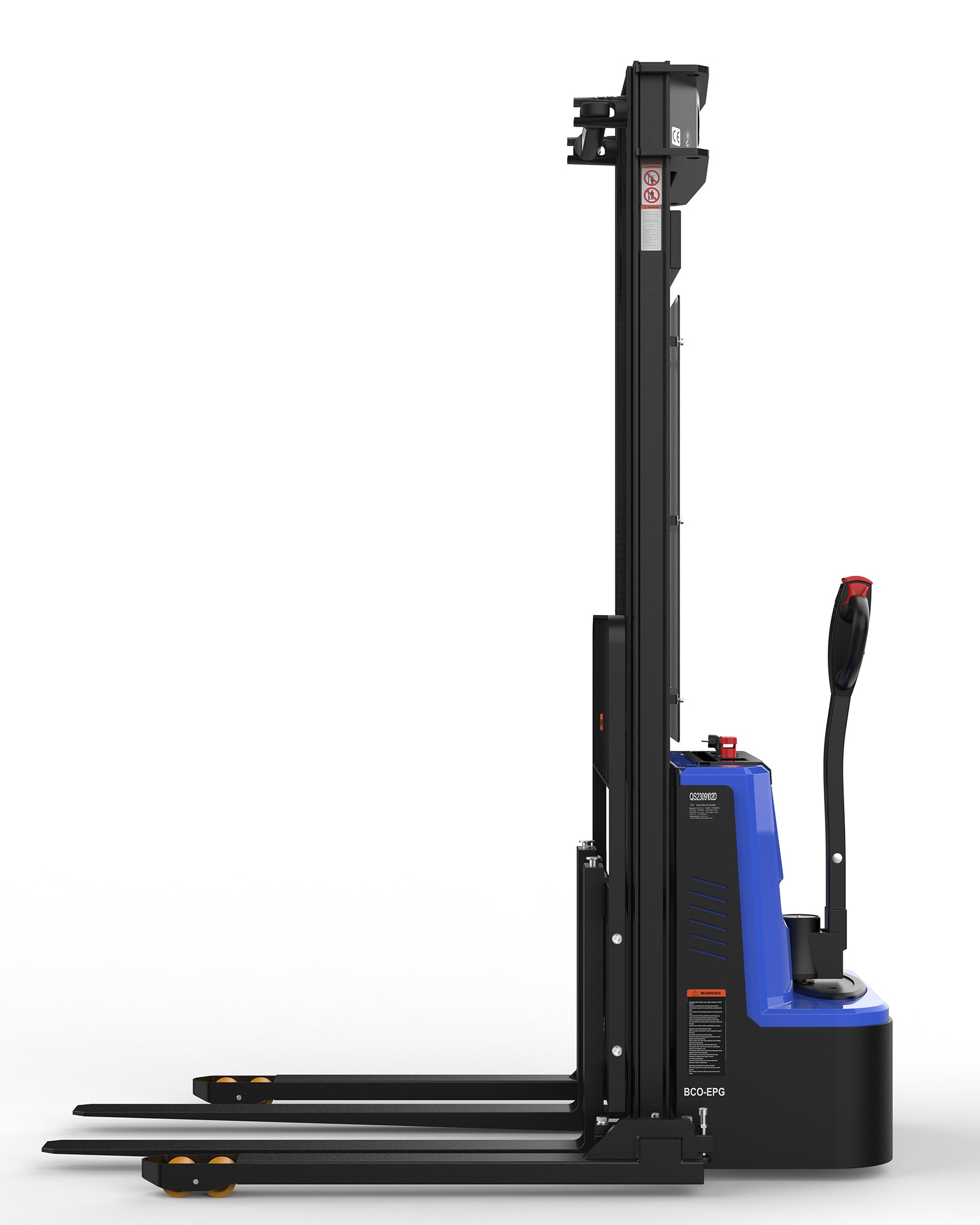

BCO-EPS STACKER
Walkie straddle leg
