ELECTRIC PALLET JACK & STACKER BUNDLE
An electric pallet jack and a straddle-leg stacker in one order. The pallet jack is rated for 4,400 lb on 47 in low-profile forks. The stacker is rated for 3,300 lb, lifts to 118 in and stands on straddle legs that adjust from 28 to 50 in. Both charge on 110 V.
- Electric pallet jack
- 1SKU BCO-EPG
- Straddle-leg stacker
- 1SKU BCO-EPS
- Rated load
- 4,409 lb (2,000 kg)
- Max lift height
- 8.07 in (205 mm)
- Fork length
- 47.24 in (1,200 mm)
- Outside fork width
- 27 in (686 mm)
- Drive wheel
- 8 in (203 mm)
- Wheels
- Polyurethane
- Motor
- DC drive
- Battery
- 24 V lithium-ion, cartridge
- Charger
- 110 V standard outlet
- Net weight
- 304 lb (138 kg)
- Rated load
- 3,306 lb (1,500 kg)
- Load center
- 23.62 in (600 mm)
- Max lift height
- 118 in (2,997 mm)
- Straddle leg span
- 28–50 in (711–1,270 mm)
- Fork length
- 44.29 in (1,125 mm)
- Fork width
- Adjustable
- Drive wheel
- 9 in (229 mm)
- Motor
- 750 W drive, 2,200 W lift (24 V)
- Charger
- 24 V, 10 A; 110 V plug
- Net weight
- 1,380 lb (626 kg)
- Footprint
- 69 × 32 in (1,753 × 813 mm)
- Drive speed
- 1.9 / 2.7 mph (3 / 4.3 km/h)
- Lift speed
- 2.8–4.1 in/s (70–105 mm/s)
- SKU
- BCO-EPG-EPS
Ships by LTL freight with a $0 shipping fee, the next business day, Monday to Friday. Freight usually takes 1 to 3 business days. Every unit is palletized and strapped, so a forklift or a standard dually can take delivery.
Prefer to collect? Choose in store pick-up in Fresno: orders placed before 2:00 pm are processed the same day.
A 3-year limited warranty from the date of purchase covers defects in materials and workmanship under normal use. Read the warranty.
Split your purchase into bi-weekly or monthly payments with Shop Pay Installments at checkout. No hidden fees, and no impact on your credit score to apply. How financing works.
For warehouses and loading docks.

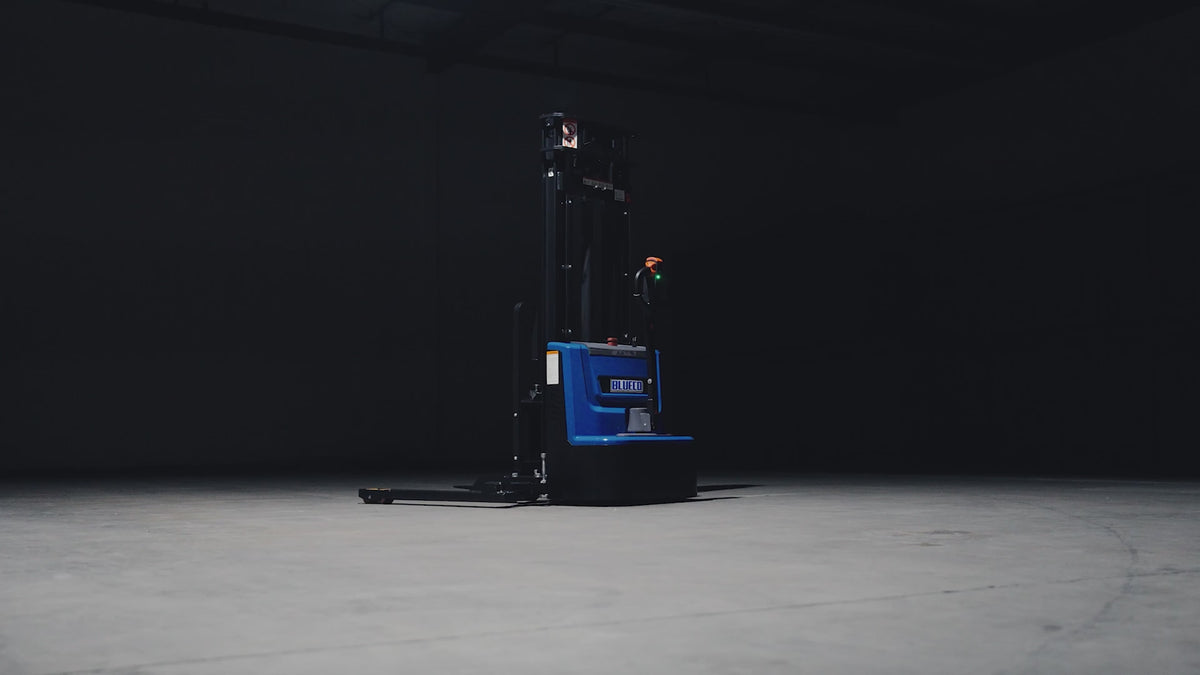

Watch the video
Both machines drive and lift electrically, with step-less speed control at your fingertips, and both charge on 110 V.
- 4,400 lbPallet jack rated load
- 118 inStacker lift height
- 3-yearLimited warranty
Move 4,400 pounds. Lift to 118 inches.
The electric pallet jack moves heavy pallets through tight aisles, crowded loading zones and LTL trucks. The straddle-leg stacker stacks pallets three to four levels high.
Ask about larger orders
Drag to turn them. On a smartphone, place the full-size pallet jack and stacker in your own space with AR and walk around them in real time.
- Units2One electric pallet jack, one straddle-leg stacker.
- Rated load, pallet jack4,400 lb2,000 kg, on 47 in low-profile forks.
- Lift height, stacker118 in2,997 mm.
- Charging110 VEach machine charges from a 110 V plug.
Move smarter. Move faster.
Low-profile forks
The pallet jack's 47 in low-profile forks slide under low-clearance pallets and heavily sagging loads.
Adjustable straddle legs
The stacker's straddle legs adjust from 28 to 50 in for pallets of every size, and the wider base adds stability when lifting heavier loads to greater heights. Its 44 in forks adjust in width too.
Step-less speed control
On both machines, the speed control on the handle works like a throttle: push it further to speed up, ease off to creep. Click to creep (the turtle on the handle) reduces torque for heavy loads at maximum lift height.
Battery and charging
The pallet jack's cartridge-style lithium-ion battery charges on or off the truck from a standard outlet, with no special circuits required. The stacker's integrated battery charges from a 110 V plug.
Large drive wheels
The pallet jack has an 8 in drive wheel and polyurethane wheels. The stacker has a 9 in drive wheel.
Magnetic key and emergency stop
Each machine starts with a magnetic key and has an emergency bump stop on the handle.
What goes into each machine.
Large driving wheels
8 in pallet jack · 9 in stacker
Handle controls and magnetic key
Smooth, responsive · On both machines
Fully adjustable straddle legs
Stacker · 28 to 50 in
The pair, side by side.
