ADVANCED
LCD DISPLAY
Beautifully displays all operating instruments such as battery level, hour meter, turtle speed status & diagnostic codes.
COMPACT &
POWERFUL

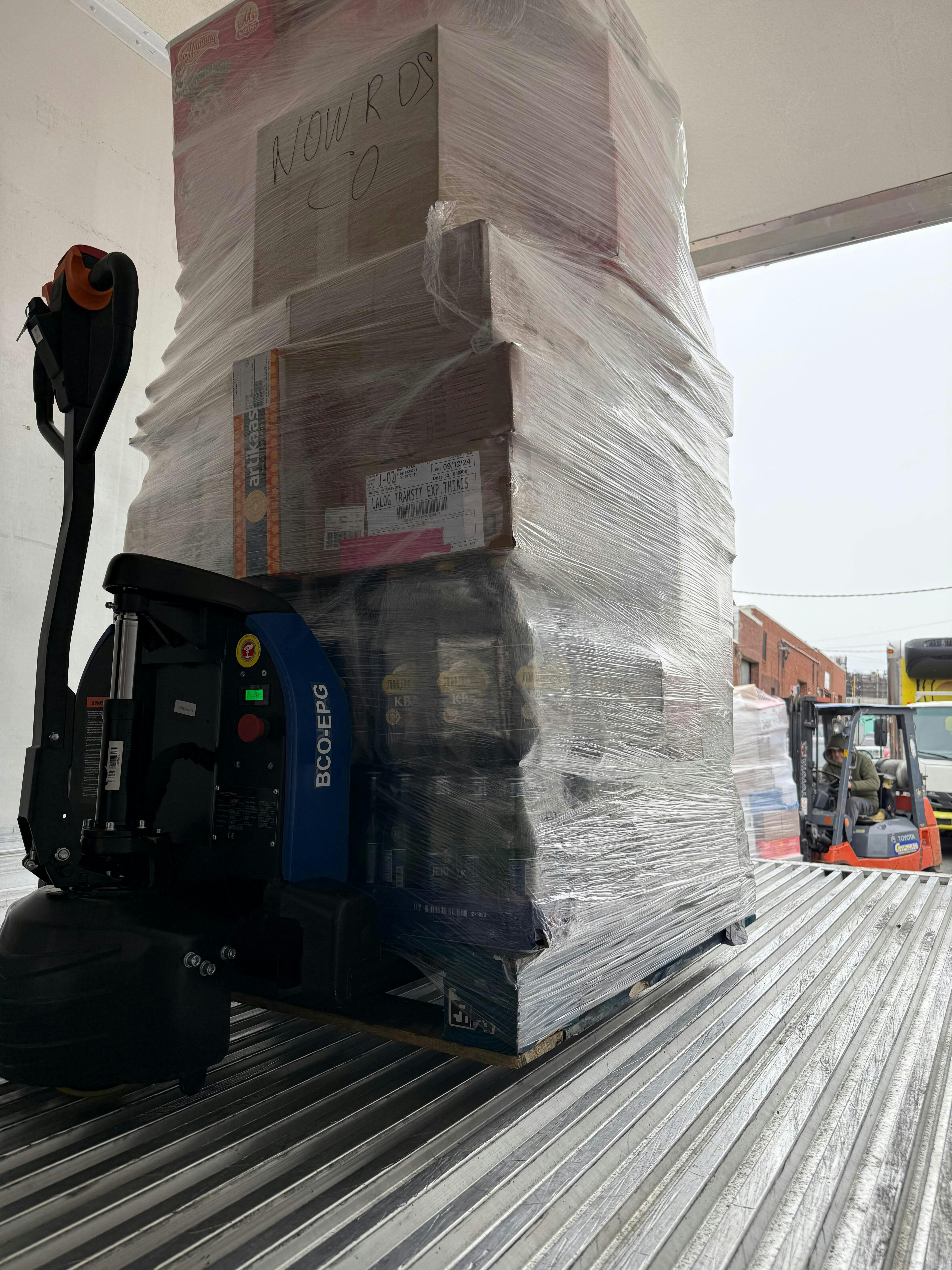

Capable of carrying loads up to 4,409lbs with ease in tight compact areas or larger facilities that need to go the distance!
BCO-EPS
specifications
| MODEL | ELECTRIC PALLET TRUCK |
|---|---|
| SKU | BCO-EPG |
| Load capacity | 4,409.245lbs |
| Power source | DC motor |
| Maximum lift height | 8.07" |
| Fork width | 6.96" |

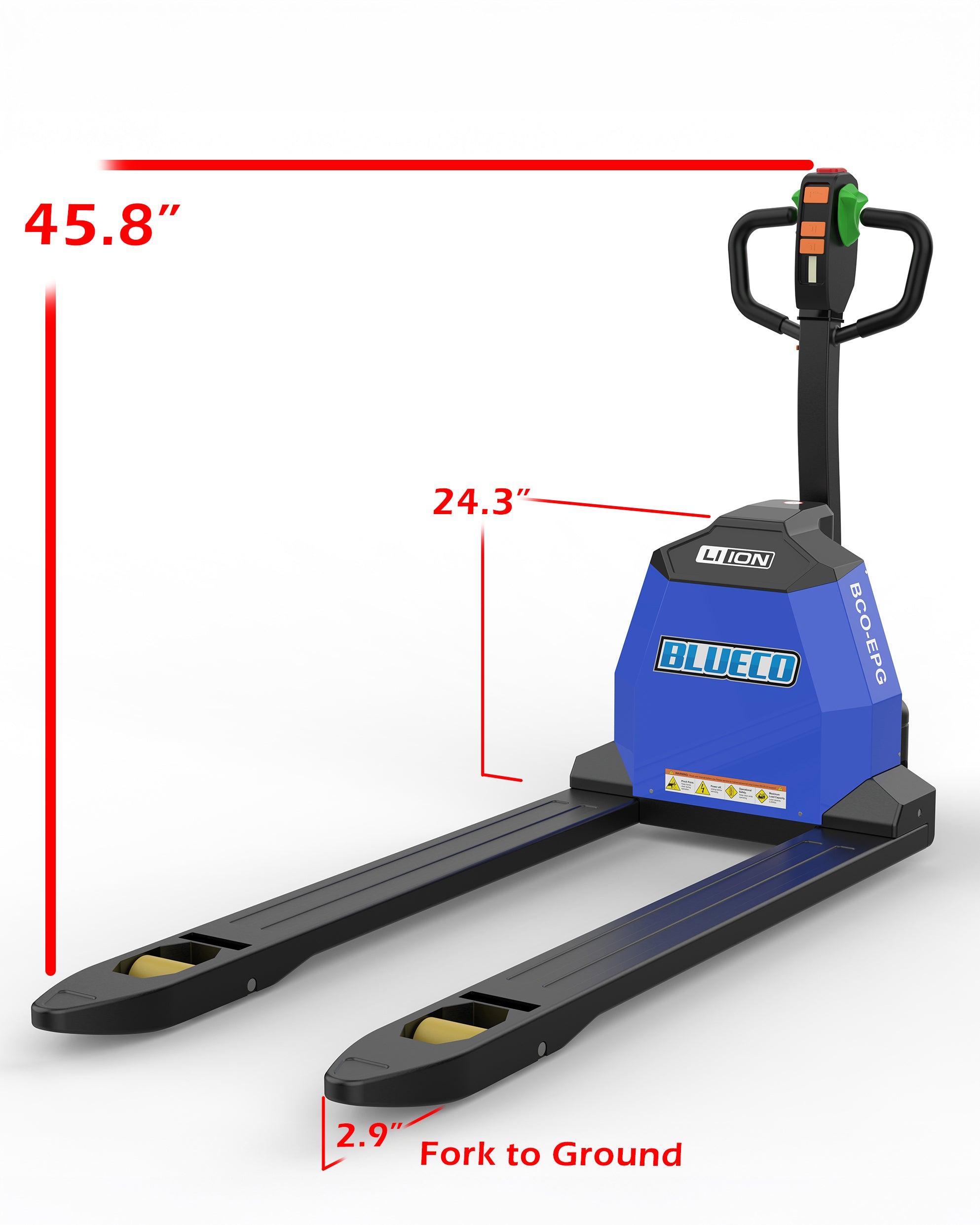

| minimum height of cargo forks | 3" |
| Fork length | 47.24" |
| Driving speed km/h | 3/4.3 |
| Stock fork lifting speed mm/s | 70-105mm |
| Battery | 40AH Battery |

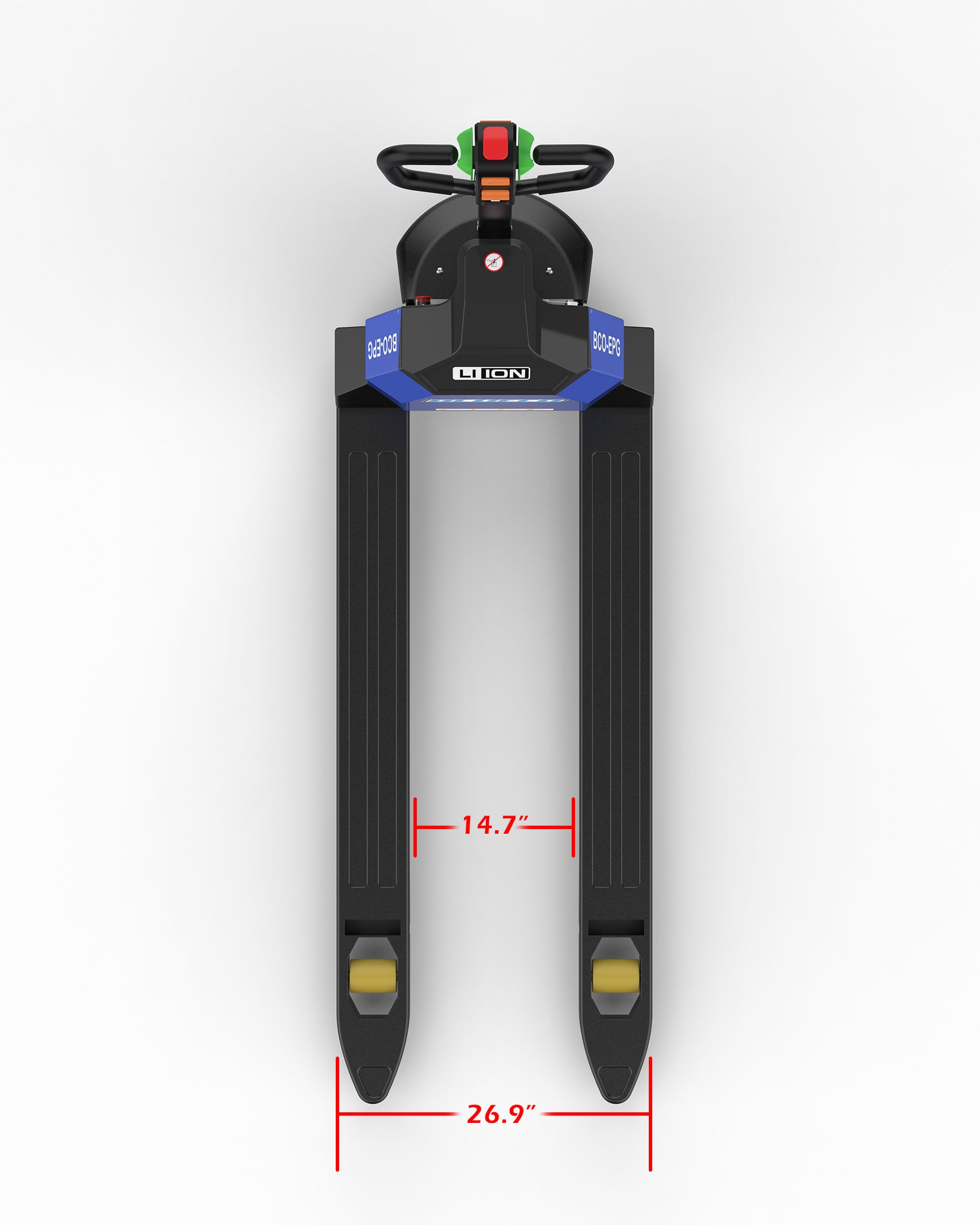

| Outside fork width | 27" |
| Inside fork width | 15.5" |
| Net weight | 304lbs |
| Certification | ISO9001 CE |
| Wheels | Polyurethane |
Features
Key
Upgraded magnetic key start up for more reliable long lasting durability.
Forks
47.24" length for all size pallets and unique load demands. Long low profile forks unique to the market to allow getting under low profile pallets a breeze! No more tall and bulky forks making getting under even some standard pallets impossible.
Emergency shut off

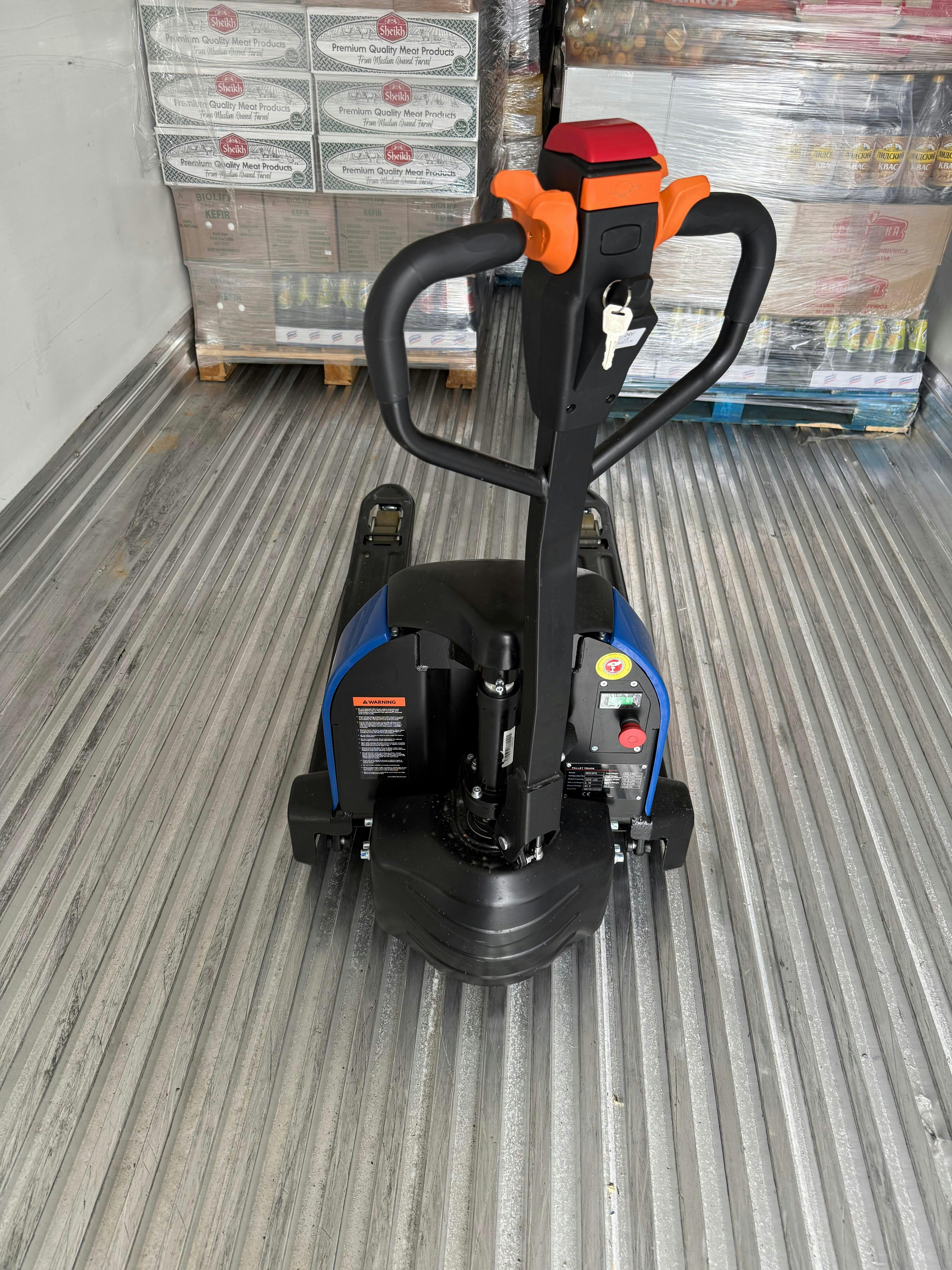

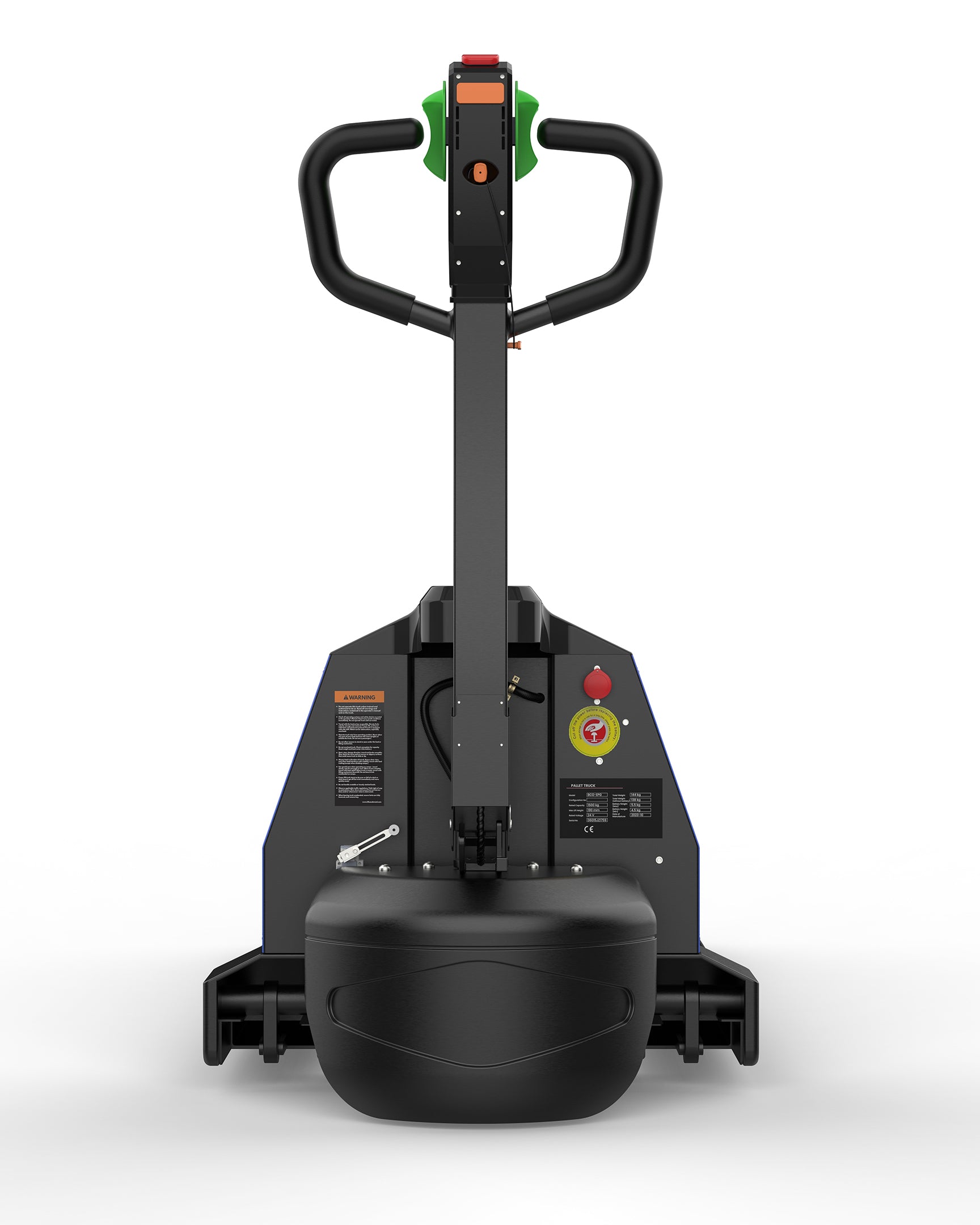

Emergency bump stop located on the handle for maximum safety during operations.
Speed control
Step-less speed control at your finger tips. Almost like a throttle, Giving more push on the orange throttle control speed regulator will speed up or slowly creep the more throttle that is given on the orange speed control handle. Click to creep icon (turtle) on the handle to reduce torque when operating heavy loads from maximum lifting heights.
Battery
Cartridge style lithium-ion battery delivers the performance you need for a full days worth of work with a single charge. Standard outlet for recharging, no special circuits required. Cartridge style allows for charging on or off the truck.
Space saving design
The compact design was engineered for compact working areas like cold storage or semi truck distribution logistics. A design that allows insane turning radius for more maneuverability while still keeping the load capacity at a sweltering 4,409lbs. Click to creep, allows the truck to maneuver with the handle in the upright position tucked against the frame. Resulting in a tighter turning radius.
