How Much Floor Space Can You Save by Using a Walkie Straddle Leg Pallet Stacker?

In today’s warehousing and manufacturing environment, space efficiency is everything. Rising storage costs and the push for operational optimization mean facilities are constantly searching for equipment that maximizes every square foot. One increasingly popular solution is the walkie straddle leg pallet stacker  a compact, versatile lift that offers capabilities close to a forklift, without the large aisle requirements.

But how much floor space can you actually save by using one? Let’s break it down with real world comparisons.

---

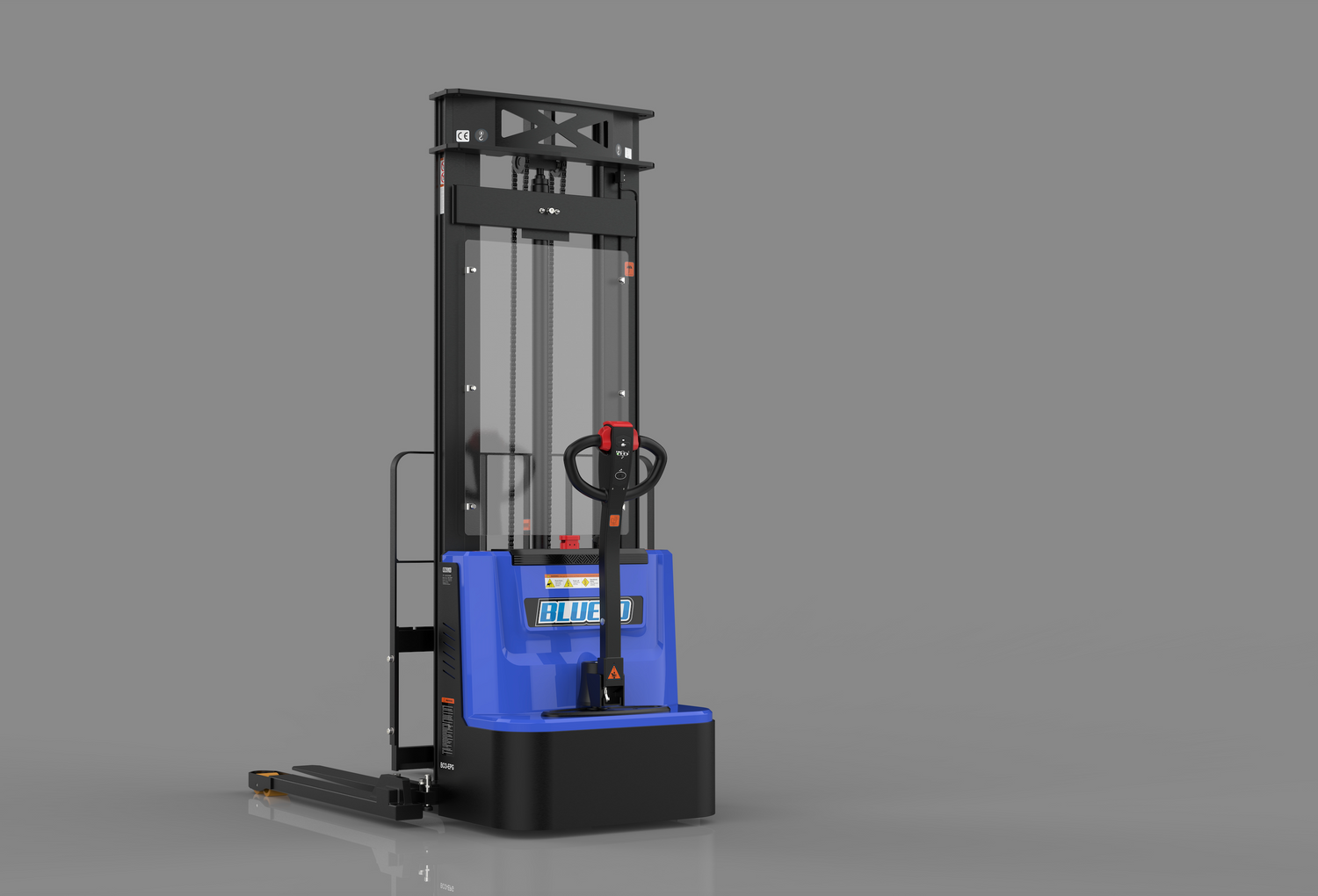

⭐ What Is a Walkie Straddle Leg Pallet Stacker?

A walkie straddle stacker is a pedestrian-operated lifting device that uses outrigger “straddle legs” to stabilize pallets as they’re raised. Unlike sit-down forklifts, it’s designed for tight spaces, low-to-medium lift heights, and light to moderate loads.

Key Advantages

• Operates in narrow aisles

• Lower cost than traditional forklifts

• Ideal for small warehouses, retail backrooms, and production areas

• Easy to maneuver due to pedestrian control

---

📏 Typical Aisle Width Requirements: Forklift vs. Walkie Stacker

Here’s where the space savings become clear.

Standard Sit-Down Forklift

• Aisle width required: 3.4 m – 4.0 m (11–13 ft)

• Turning radius: Large, often exceeding 2 m (6–7 ft)

• Clearance needed: High, especially around racking intersections

Walkie Straddle Leg Stacker

• Aisle width required: 2.1 m – 2.4 m (7–8 ft)

• Turning radius: Extremely tight, often under 1.6 m (5 ft)

• Clearance needed: Minimal compared to a forklift

Floor Space Savings

On average, switching to a walkie straddle stacker can reduce aisle width by:

1.0–1.5 meters (3–5 feet) per aisle

This equates to:

• 30–40% floor space savings in aisles

• Potential for one extra racking row in many warehouse layouts

• Up to 25% increase in pallet storage density

---

📦 Real Example: Warehouse Aisle Optimization

Imagine a warehouse with 10 aisles, each 30 meters long.

Using a Forklift

• Aisle width: 3.6 m

• Total aisle footprint: 1,080 m²

Using a Walkie Stacker

• Aisle width: 2.3 m

• Total aisle footprint: 690 m²

Space Saved:

390 m²  roughly the size of four small offices, or 50 full pallets of extra storage.

---

🏭 Why Straddle Stackers Save So Much Space

Walkie straddle stackers are engineered for ultra-compact maneuvering:

1. Pedestrian Operation

The operator walks behind or beside the unit, eliminating the need for large turning arcs.

2. Short Chassis

The design naturally reduces turning radii compared to ride on forklifts.

3. Straddle Legs

Because the legs support the load, the stacker doesn’t need wide counterbalance space behind the unit.

4. Precision Lifting

Ideal for environments where forklifts feel too large or risky.

---

🧮 Quick Space-Savings Formula (Use for Your Own Facility)

To estimate how much space you can save:

(Current aisles × forklift width) – (Same aisles × walkie stacker width) = Total space saved

Example:
10 aisles × (3.6 m – 2.3 m) = 13 m of total width saved
Multiply by aisle length to get square meters saved.

If you want, I can calculate this for your exact warehouse dimensions.

---

🧠 Additional Benefits Beyond Space Savings

While maximizing storage is the main attraction, walkie straddle stackers also offer:

✔ Lower equipment cost

Roughly 40–70% cheaper than standard forklifts.

✔ Lower training requirements

No formal forklift license is required in many areas.

✔ Reduced safety risks

Slower operating speeds and better visibility improve workplace safety.

✔ Better for mixed-use spaces

Excellent for production floors, retail stockrooms, and mezzanine levels.

---

🎯 Conclusion: Walkie Straddle Stackers Can Transform Your Storage Layout

Switching from traditional forklifts to a walkie straddle leg pallet stacker can save:

• 30–40% aisle space

• Up to 25% total warehouse footprint

• Enough room for additional racks, workstations, or product flow paths

If your operation struggles with tight aisles or limited expansion options, a walkie stacker is one of the most cost effective upgrades you can make.
